2017 Bulls · MDB

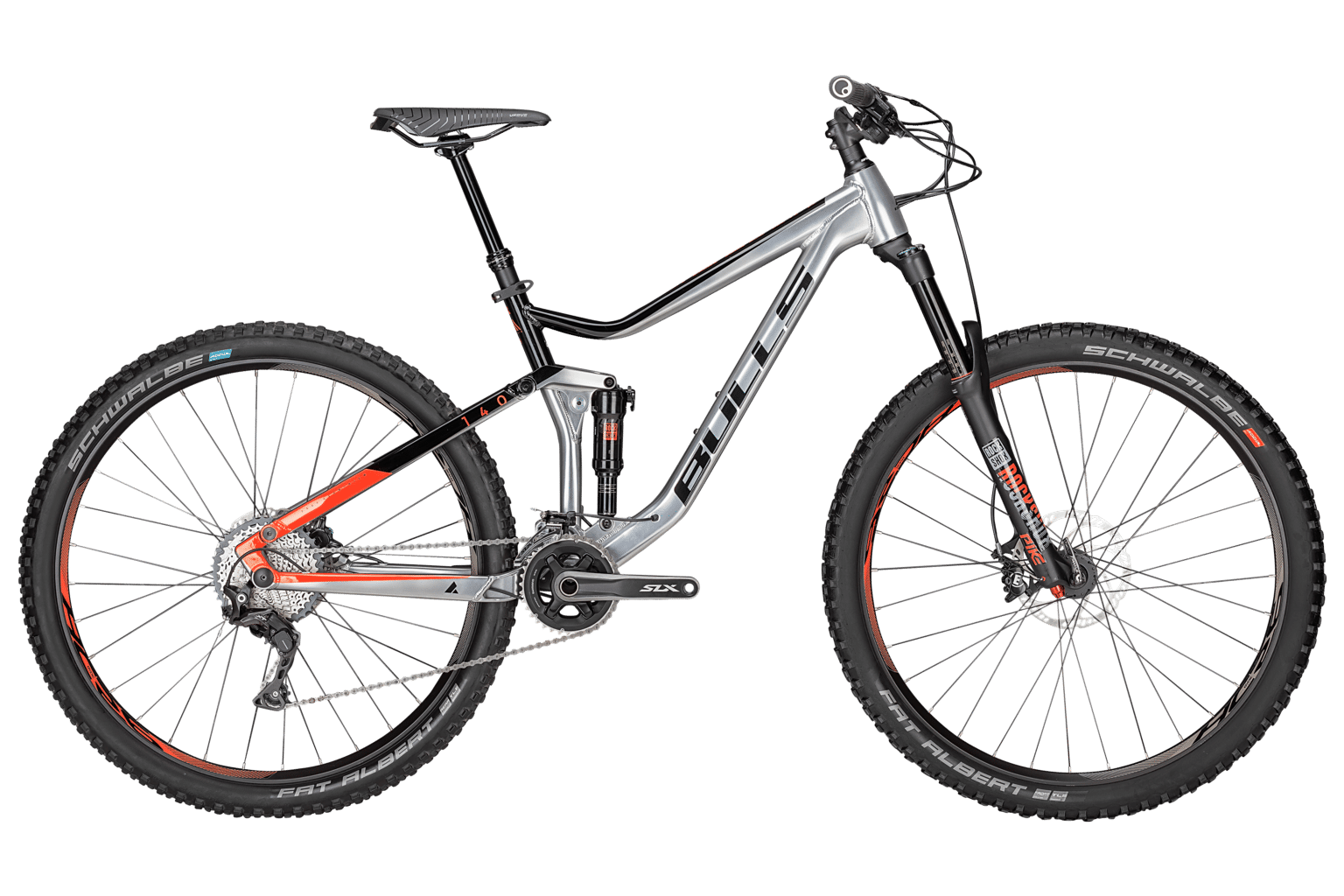

2017 Bulls Wild Rush geometry
Full frame geometry for the 2017 Bulls Wild Rush, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 627 | 430 | 74 | 68 | 110 | 610 | 440 | 30 | 460 | 1181 |
| S | 627 | 415 | 74 | 68 | 110 | 595 | 390 | 30 | 460 | 1166 |
| L | 641 | 445 | 74 | 68 | 125 | 629 | 490 | 30 | 460 | 1202 |
| XL | 665 | 460 | 74 | 68 | 150 | 650 | 540 | 30 | 460 | 1225 |
All measurements in millimetres unless marked (°) for angles.
