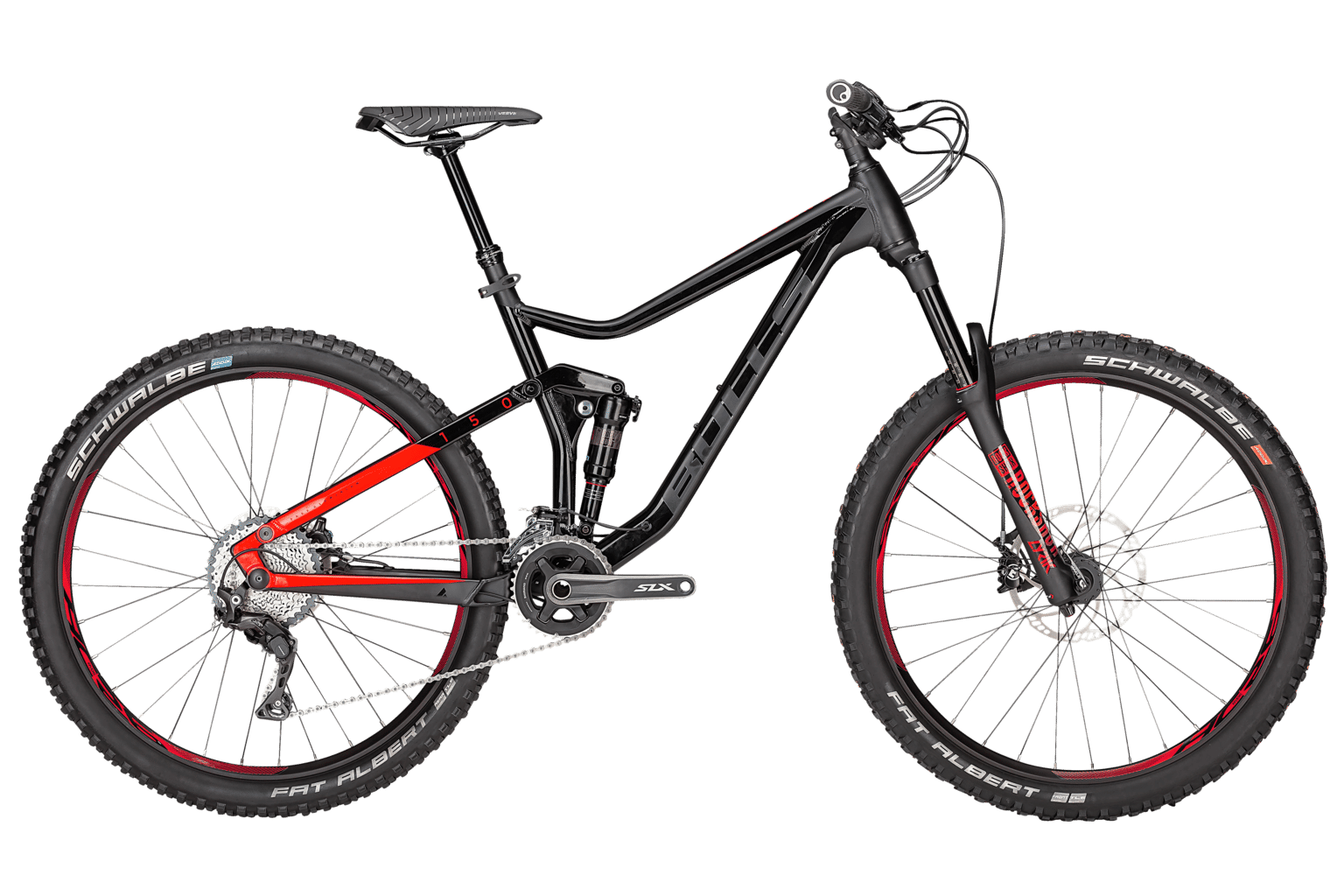

2017 Bulls Wild Mojo geometry
Full frame geometry for the 2017 Bulls Wild Mojo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 609 | 430 | 74 | 68 | 110 | 604 | 440 | 42 | 440 | 1154 |
| S | 609 | 415 | 74 | 68 | 110 | 589 | 390 | 42 | 440 | 1139 |
| L | 632 | 445 | 74 | 68 | 135 | 626 | 490 | 42 | 445 | 1183 |
| XL | 655 | 460 | 74 | 68 | 160 | 647 | 540 | 42 | 450 | 1212 |
All measurements in millimetres unless marked (°) for angles.
