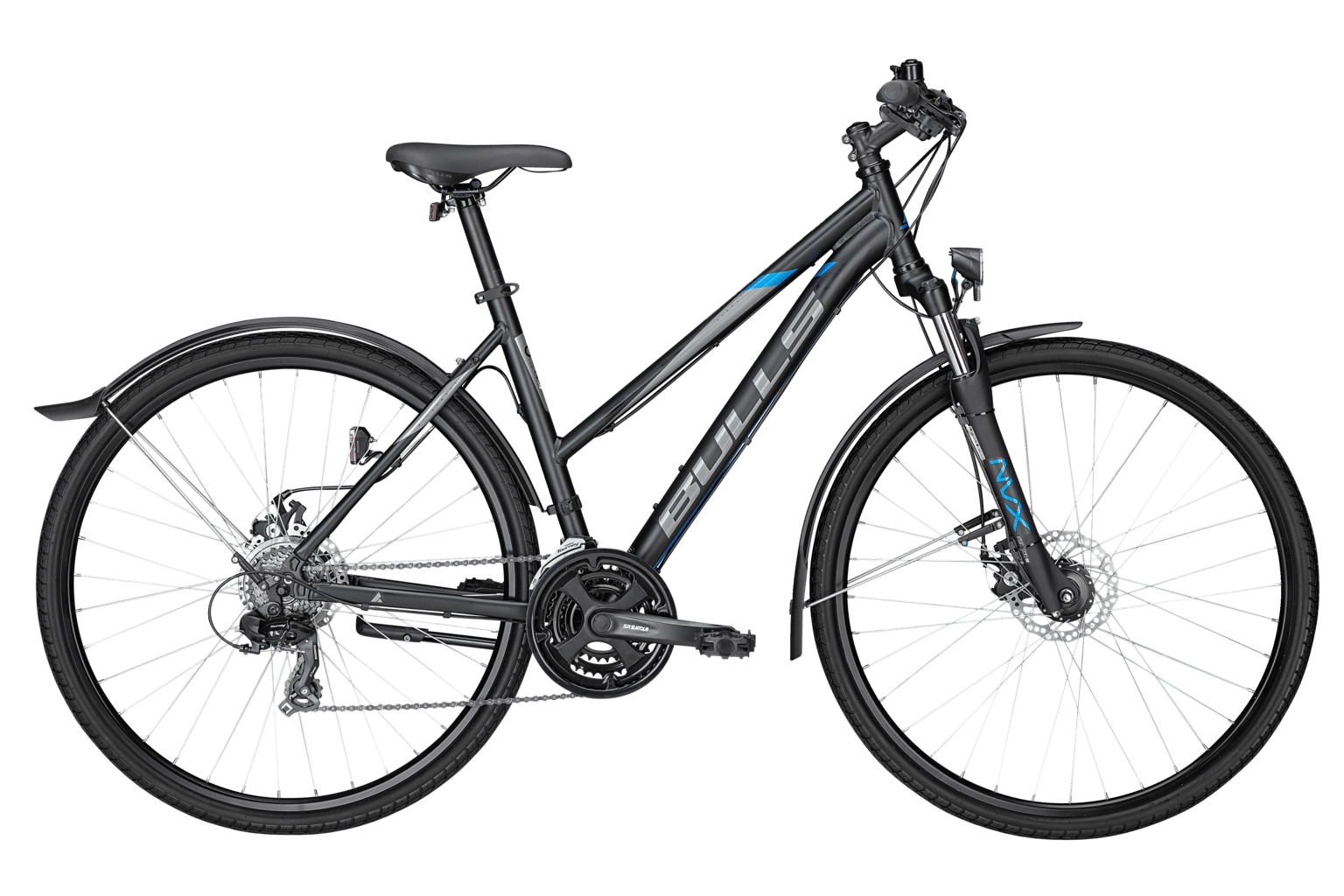

2017 Bulls Wild Cross Lady geometry
Full frame geometry for the 2017 Bulls Wild Cross Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 628 | 384 | 74 | 71 | 130 | 570 | 480 | 55 | 440 | 1060 |
| L | 633 | 393 | 74 | 71 | 135 | 580 | 540 | 55 | 440 | 1070 |
| S | 633 | 379 | 75 | 71 | 130 | 555 | 440 | 60 | 440 | 1055 |
All measurements in millimetres unless marked (°) for angles.
