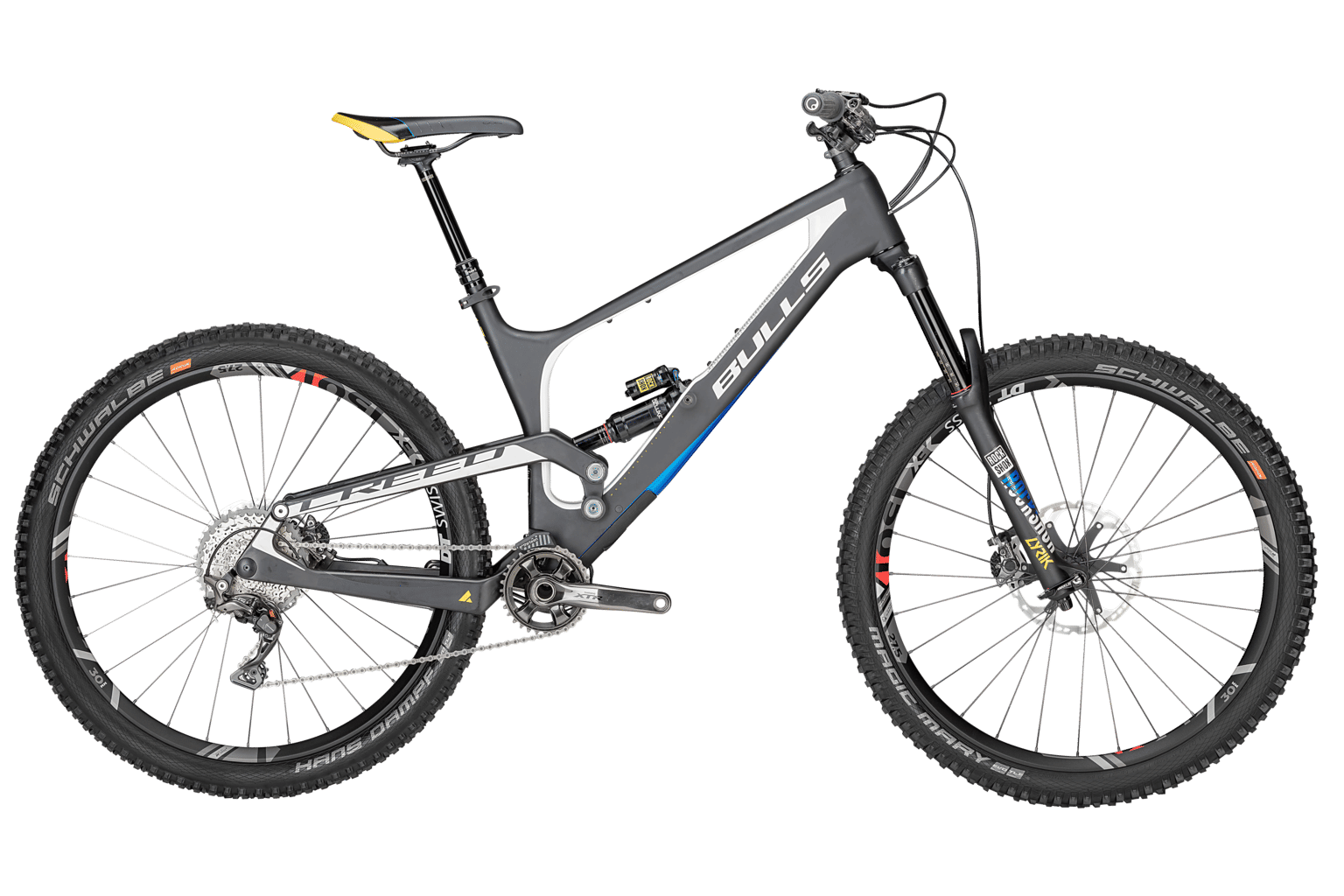

2017 Bulls Wild Creed geometry
Full frame geometry for the 2017 Bulls Wild Creed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 610 | 430 | 75 | 67 | 110 | 599 | 440 | 17 | 430 | 1164 |
| S | 610 | 415 | 75 | 67 | 110 | 584 | 390 | 17 | 430 | 1149 |
| L | 624 | 445 | 75 | 67 | 125 | 618 | 490 | 17 | 430 | 1185 |
| XL | 638 | 460 | 75 | 67 | 140 | 637 | 540 | 17 | 430 | 1206 |
All measurements in millimetres unless marked (°) for angles.
