2017 Bulls · MD

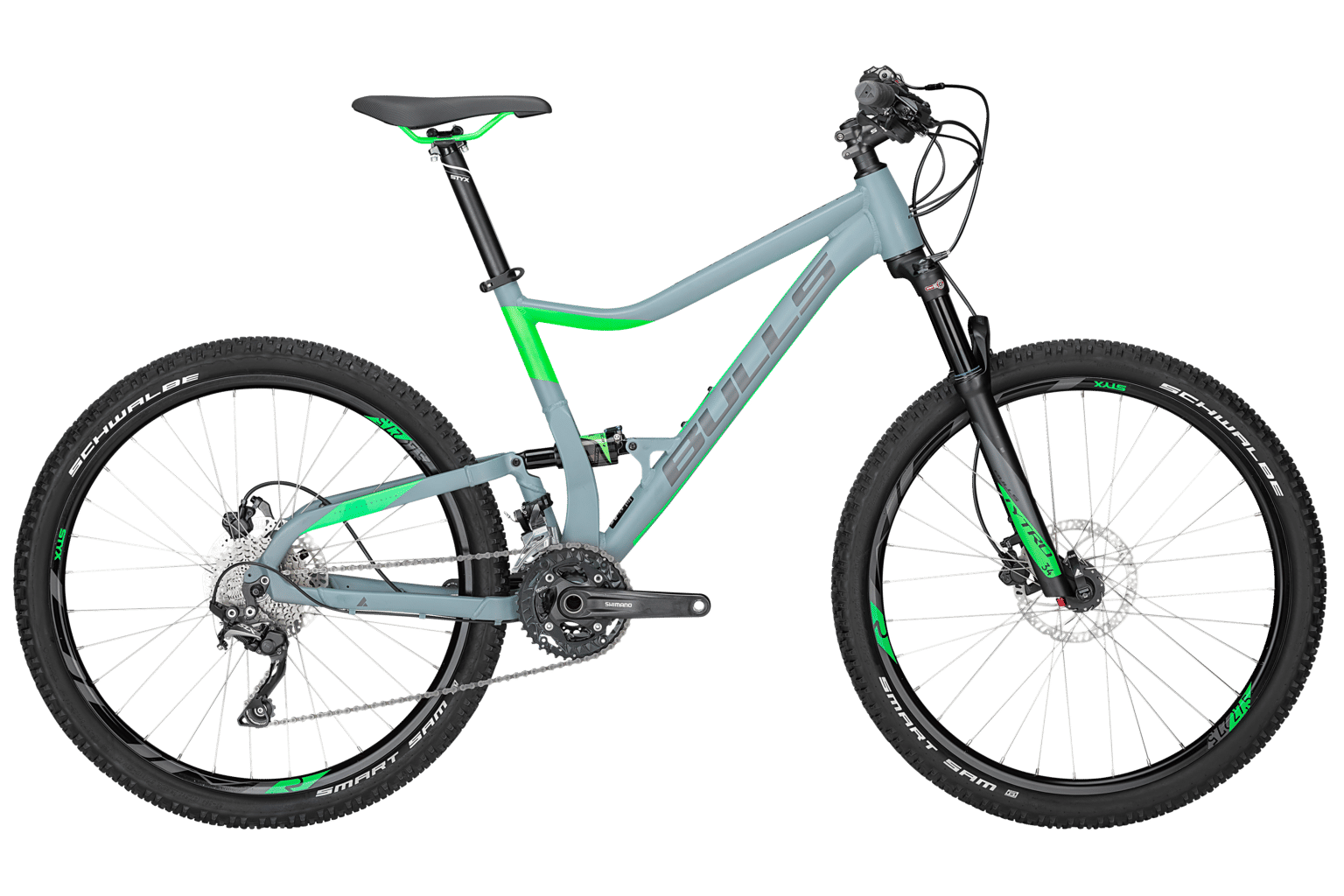

2017 Bulls Wild Card 2 geometry
Full frame geometry for the 2017 Bulls Wild Card 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 585 | 392 | 74 | 69 | 110 | 565 | 410 | 35 | 441 | 1088 |
| M | 594 | 409 | 74 | 69 | 120 | 585 | 460 | 35 | 441 | 1109 |
| L | 617 | 422 | 74 | 69 | 145 | 605 | 510 | 35 | 441 | 1131 |
| XL | 645 | 434 | 74 | 69 | 175 | 625 | 560 | 35 | 441 | 1153 |
All measurements in millimetres unless marked (°) for angles.
