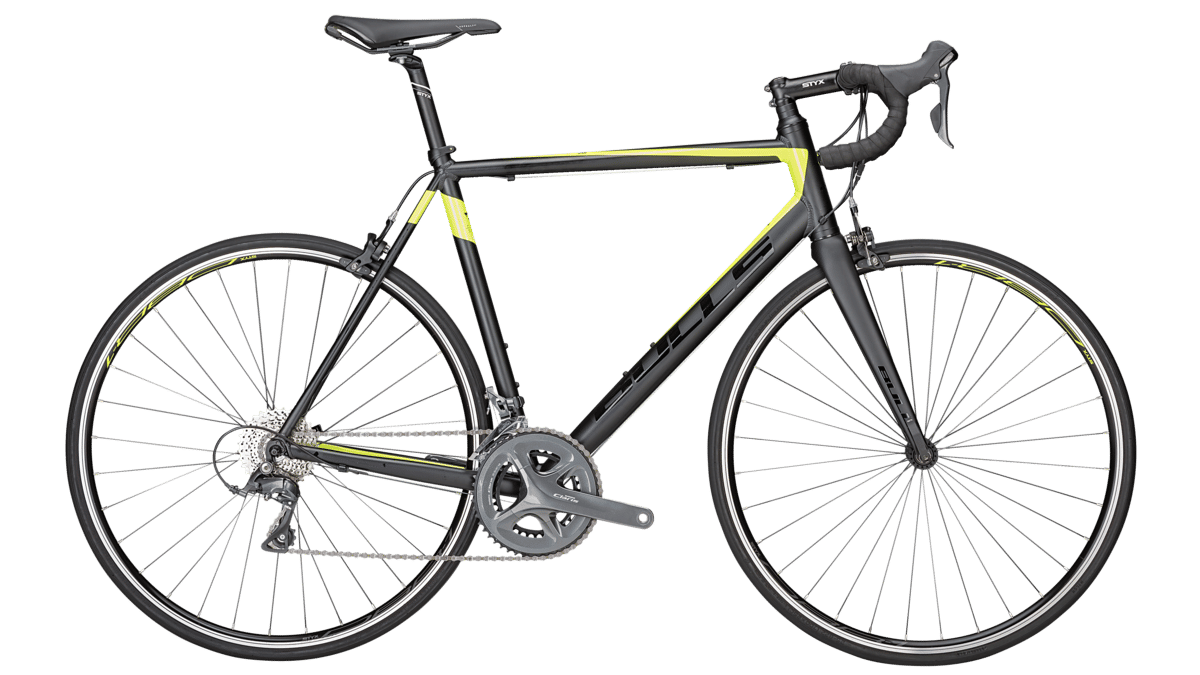

2017 Bulls Vulture geometry
Full frame geometry for the 2017 Bulls Vulture, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 522 | 380 | 75 | 71 | 120 | 525 | 470 | 70 | 410 | 985 |
| S | 535 | 387 | 75 | 72 | 130 | 535 | 500 | 70 | 410 | 987 |
| M | 551 | 392 | 74 | 73 | 150 | 550 | 530 | 65 | 410 | 995 |
| L | 579 | 398 | 74 | 73 | 180 | 570 | 560 | 65 | 410 | 1010 |
| XL | 615 | 402 | 73 | 73 | 215 | 590 | 590 | 65 | 410 | 1020 |
All measurements in millimetres unless marked (°) for angles.
