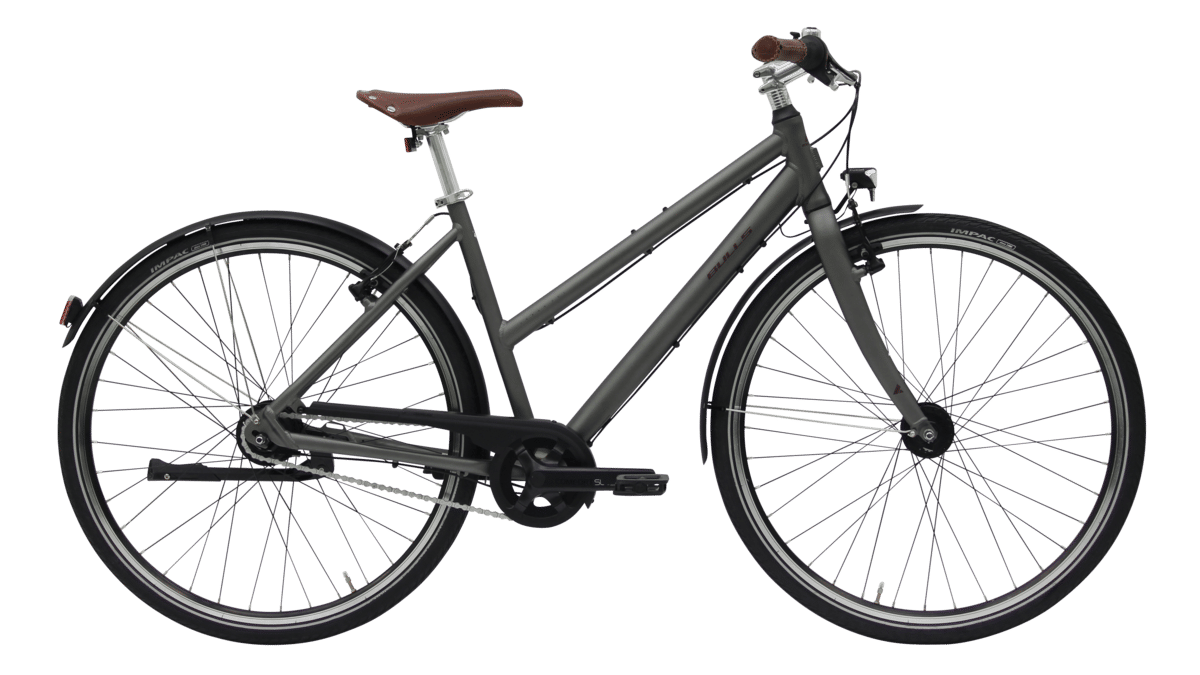

2017 Bulls Urban 8 S Lady geometry
Full frame geometry for the 2017 Bulls Urban 8 S Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 549 | 402 | 73 | 71 | 130 | 570 | 440 | 60 | 450 | 1064 |
| M | 568 | 411 | 73 | 71 | 150 | 585 | 480 | 60 | 450 | 1080 |
| L | 587 | 420 | 73 | 71 | 170 | 600 | 540 | 60 | 450 | 1096 |
All measurements in millimetres unless marked (°) for angles.
