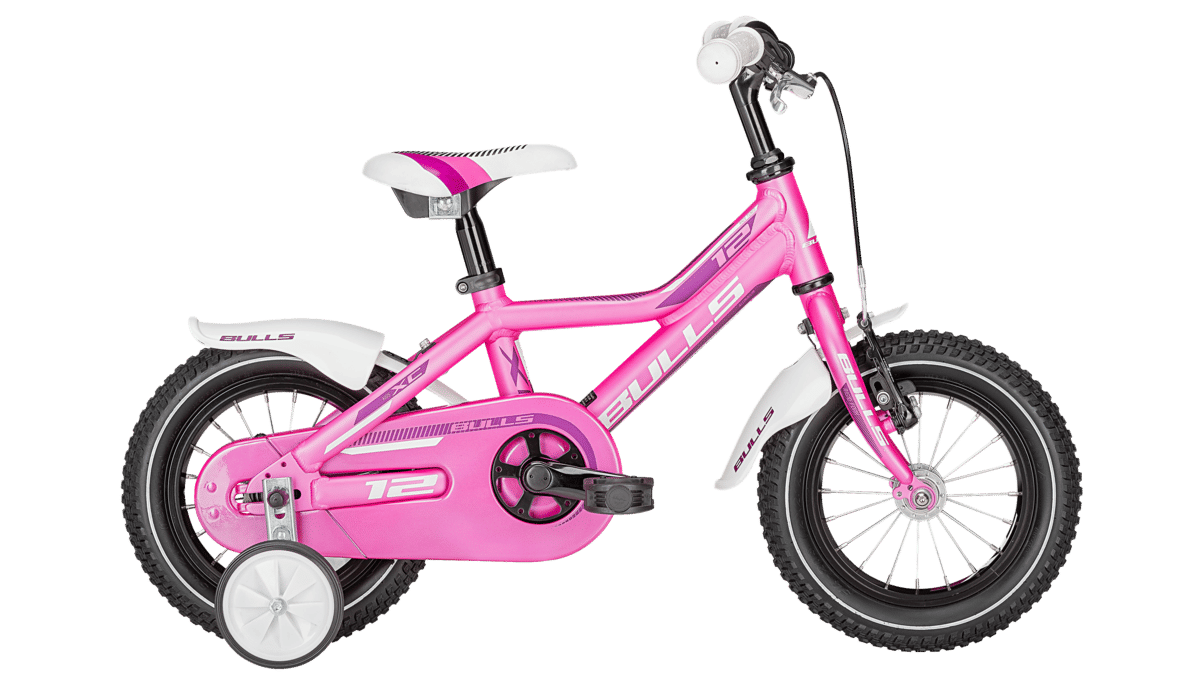

2017 Bulls Tokee Lite 12 geometry
Full frame geometry for the 2017 Bulls Tokee Lite 12, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 278 | 220 | 74 | 70 | 100 | 300 | 190 | 20 | 240 | 595 |
All measurements in millimetres unless marked (°) for angles.
