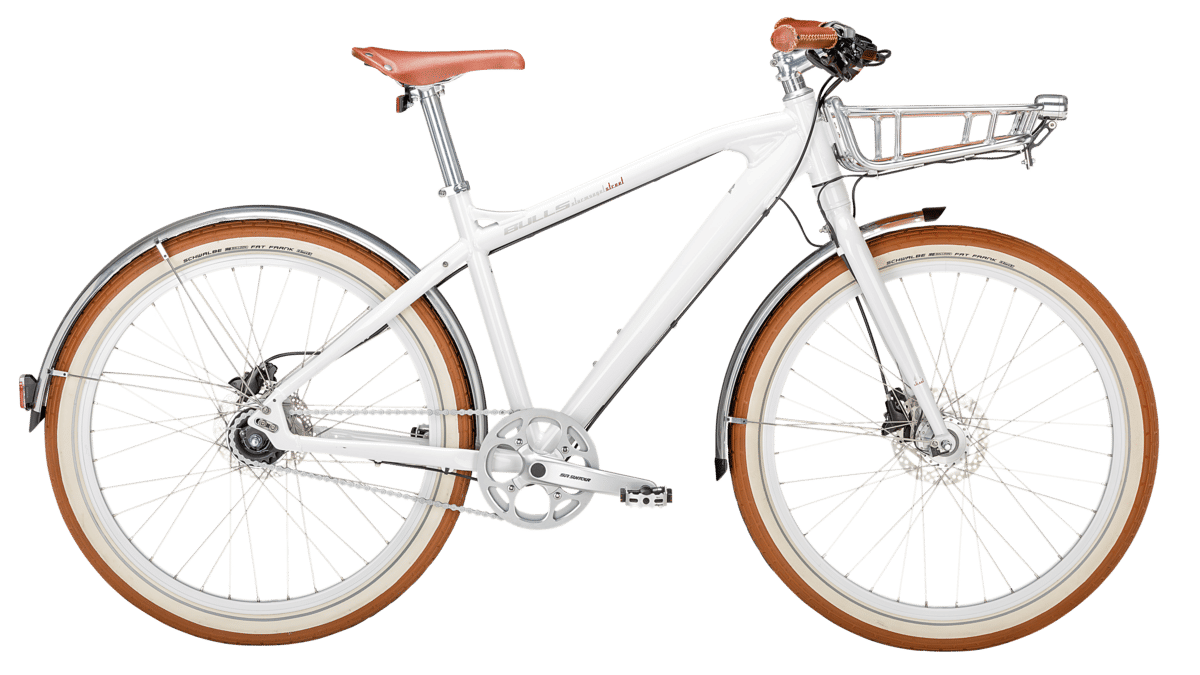

2017 Bulls Sturmvogel geometry
Full frame geometry for the 2017 Bulls Sturmvogel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 578 | 404 | 74 | 71 | 130 | 570 | 410 | 43 | 445 | 1084 |
| S | 589 | 405 | 73 | 71 | 140 | 585 | 460 | 43 | 445 | 1083 |
| L | 608 | 429 | 73 | 71 | 160 | 615 | 560 | 43 | 445 | 1114 |
| M | 608 | 414 | 73 | 71 | 160 | 600 | 510 | 43 | 445 | 1099 |
All measurements in millimetres unless marked (°) for angles.
