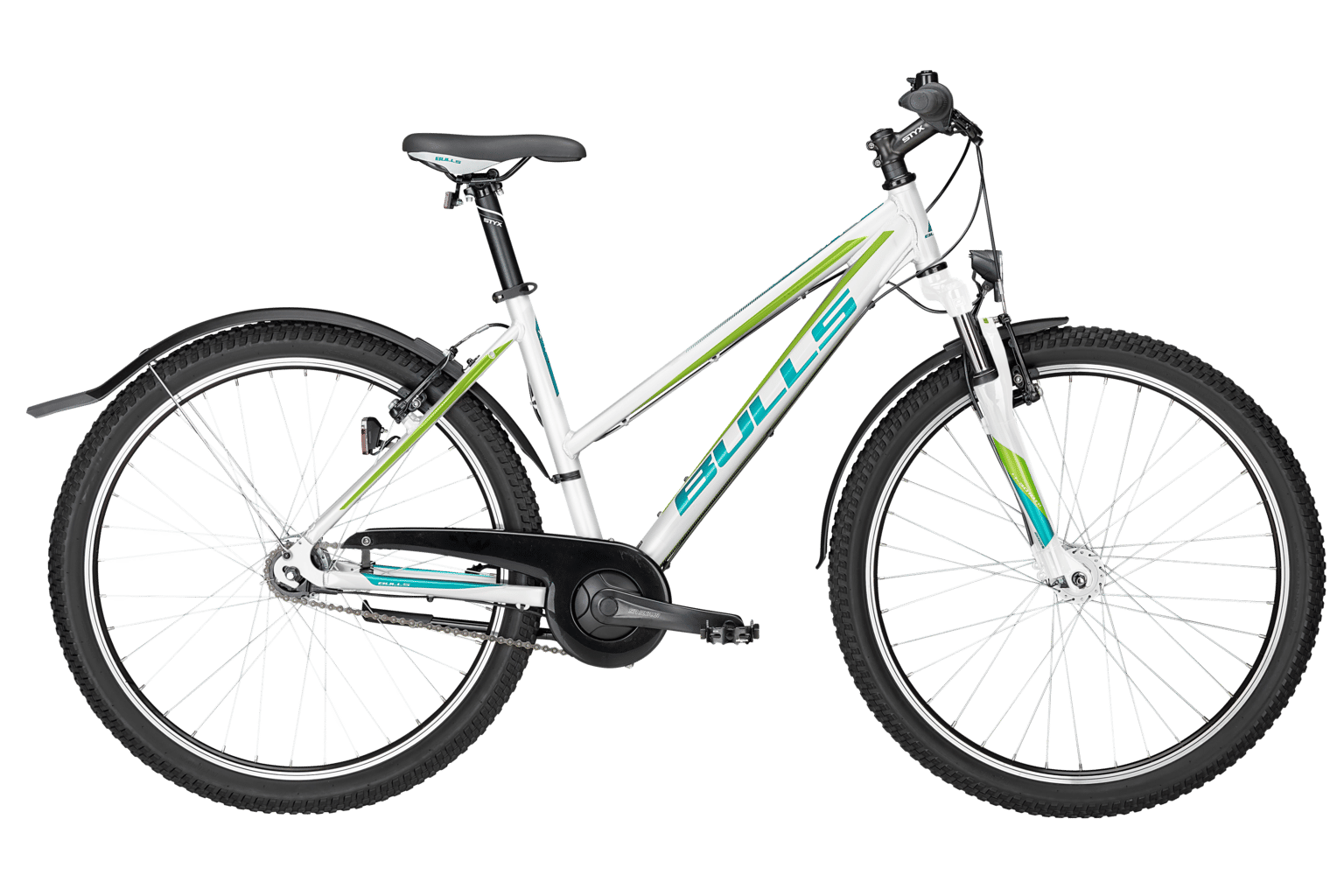

2017 Bulls Sharptail Street 1 27.5 geometry
Full frame geometry for the 2017 Bulls Sharptail Street 1 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 585 | 386 | 73 | 70 | 100 | 565 | 410 | 45 | 440 | 1065 |
| XS | 585 | 366 | 73 | 70 | 100 | 545 | 370 | 45 | 440 | 1045 |
| M | 599 | 402 | 73 | 70 | 120 | 585 | 460 | 40 | 440 | 1088 |
| L | 622 | 415 | 73 | 70 | 145 | 605 | 510 | 40 | 440 | 1110 |
| XL | 646 | 428 | 73 | 70 | 175 | 625 | 560 | 35 | 440 | 1133 |
All measurements in millimetres unless marked (°) for angles.
