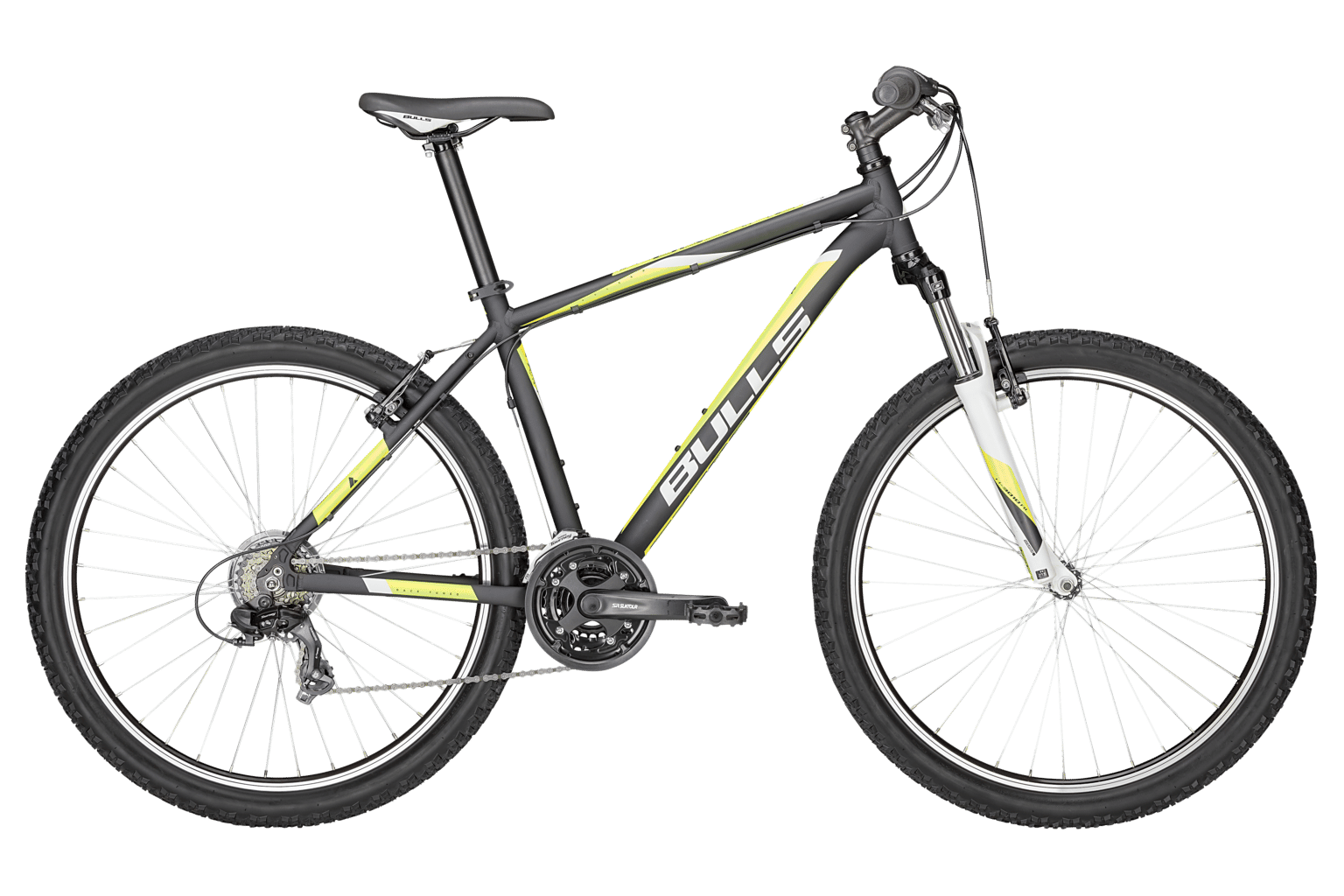

2017 Bulls Pulsar Eco geometry
Full frame geometry for the 2017 Bulls Pulsar Eco, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 571 | 385 | 73 | 70 | 130 | 560 | 410 | 40 | 430 | 1049 |
| XS | 571 | 370 | 73 | 70 | 130 | 545 | 370 | 40 | 430 | 1034 |
| M | 576 | 399 | 73 | 70 | 140 | 575 | 460 | 35 | 430 | 1067 |
| L | 590 | 410 | 73 | 70 | 155 | 590 | 510 | 35 | 430 | 1083 |
| XL | 618 | 416 | 73 | 70 | 185 | 605 | 560 | 35 | 430 | 1099 |
All measurements in millimetres unless marked (°) for angles.
