2017 Bulls · YH

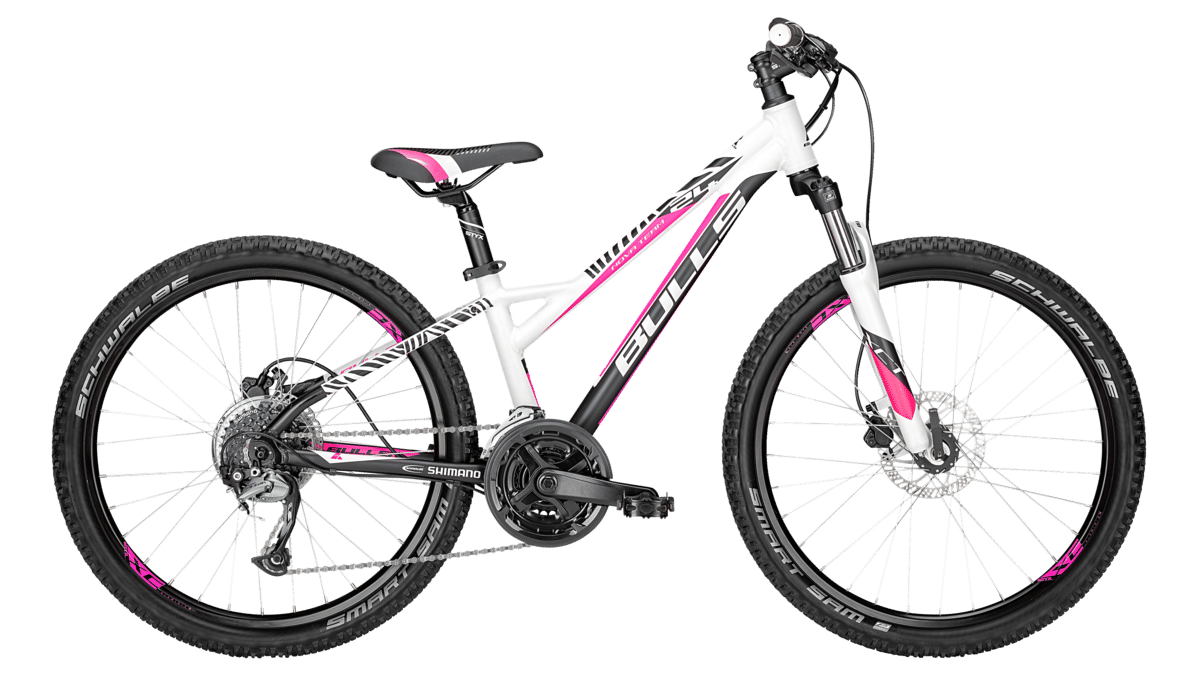

2017 Bulls Nova Team Disc 24 geometry
Full frame geometry for the 2017 Bulls Nova Team Disc 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 538 | 336 | 73 | 70 | 120 | 500 | 320 | 45 | 410 | 970 |
All measurements in millimetres unless marked (°) for angles.
