2017 Bulls · RW

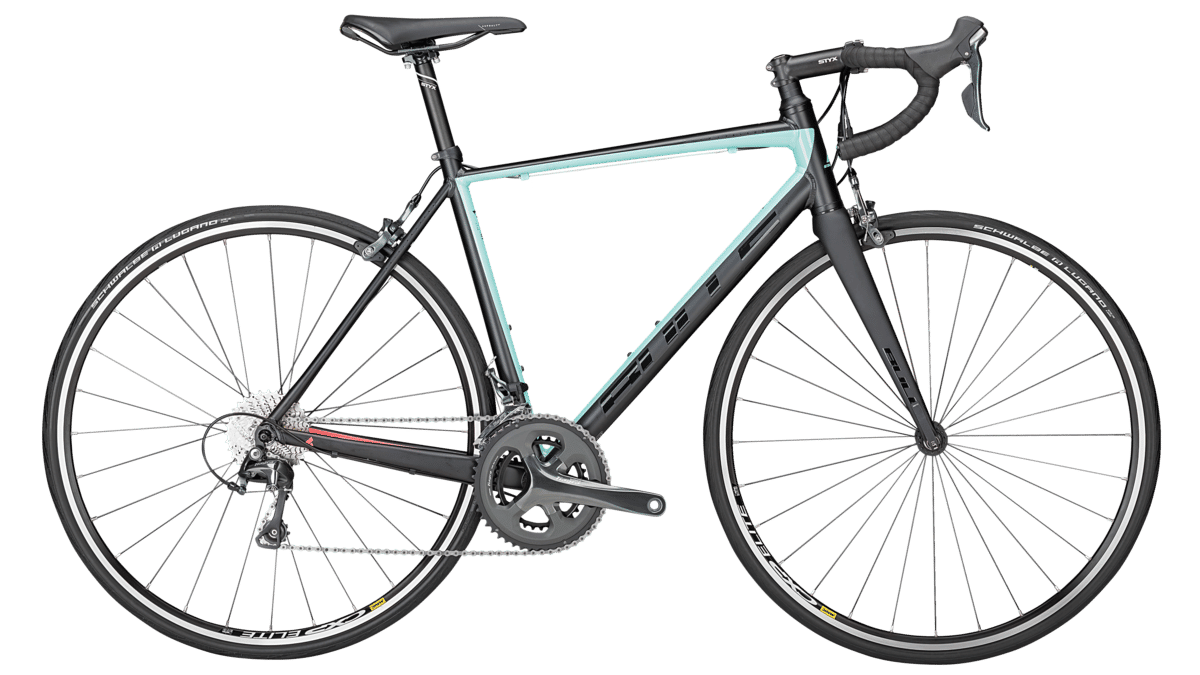

2017 Bulls Night Falcon geometry
Full frame geometry for the 2017 Bulls Night Falcon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 527 | 359 | 75 | 71 | 120 | 500 | 460 | 75 | 410 | 970 |
| 49 | 544 | 369 | 75 | 72 | 140 | 520 | 490 | 70 | 410 | 979 |
| 51 | 565 | 378 | 74 | 72 | 160 | 540 | 510 | 70 | 410 | 990 |
| 54 | 586 | 386 | 74 | 73 | 180 | 560 | 540 | 70 | 410 | 1000 |
All measurements in millimetres unless marked (°) for angles.
