2017 Bulls · UD

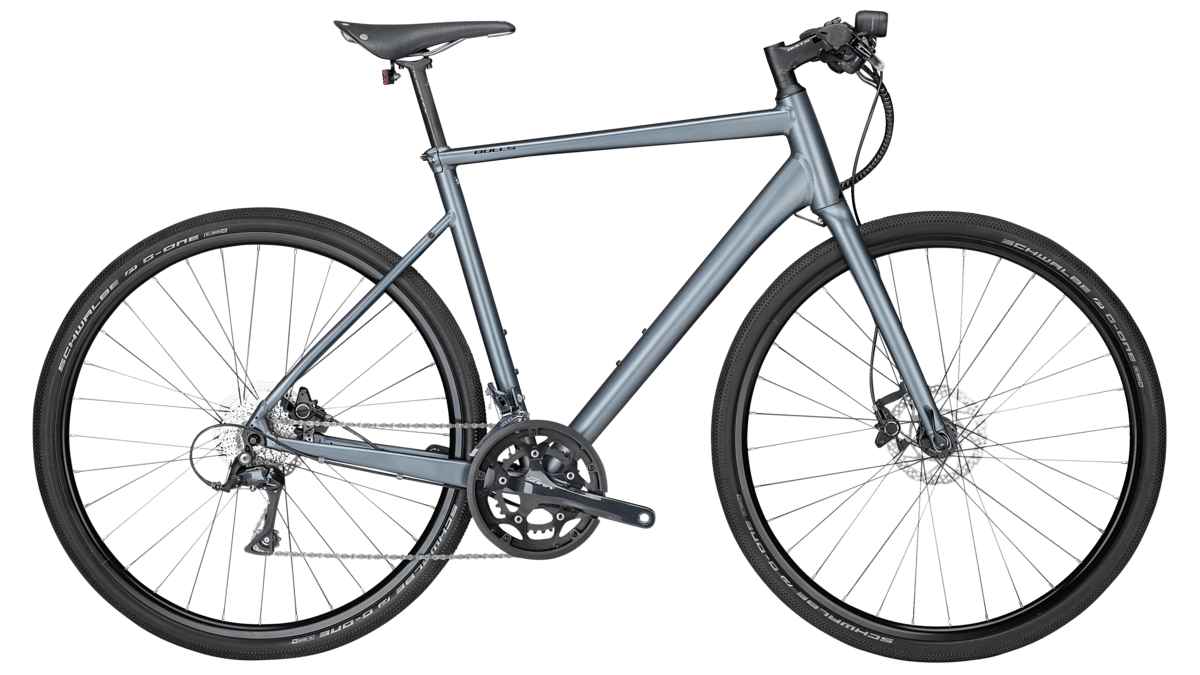

2017 Bulls Millennial geometry
Full frame geometry for the 2017 Bulls Millennial, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 592 | 385 | 74 | 71 | 160 | 560 | 520 | 80 | 440 | 1048 |
| M | 613 | 393 | 74 | 71 | 180 | 575 | 550 | 80 | 440 | 1059 |
| L | 644 | 399 | 74 | 72 | 210 | 590 | 580 | 80 | 440 | 1070 |
All measurements in millimetres unless marked (°) for angles.
