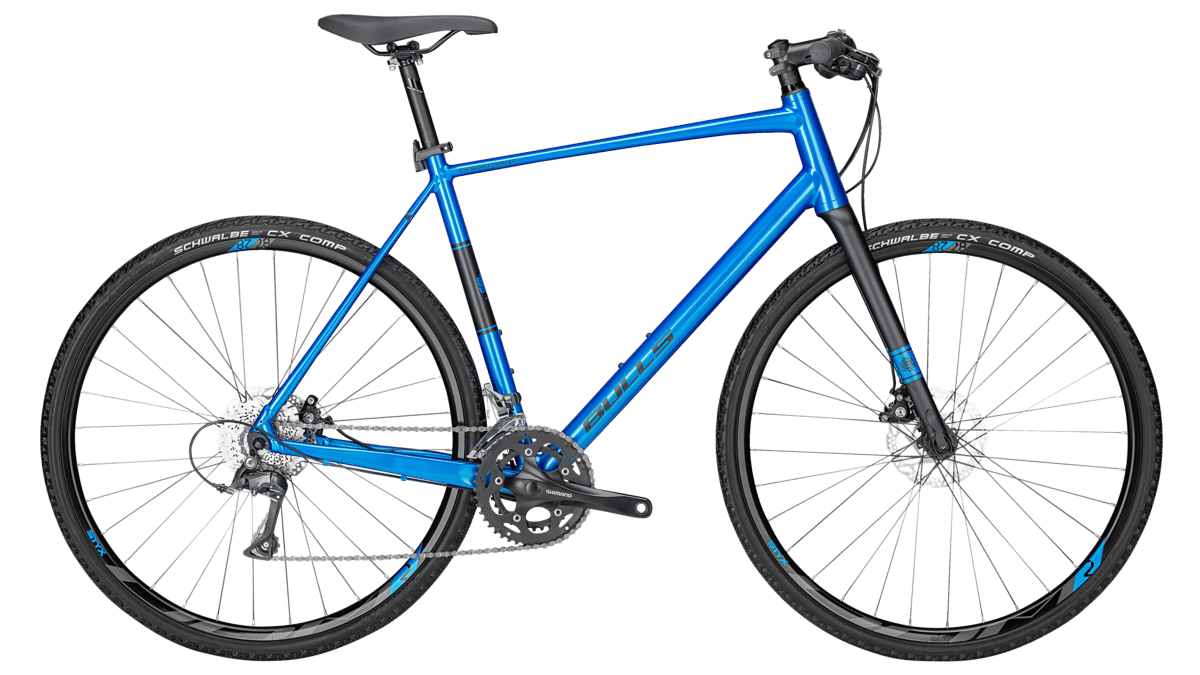

2017 Bulls Espresso Grinder geometry
Full frame geometry for the 2017 Bulls Espresso Grinder, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 562 | 400 | 74 | 70 | 135 | 566 | 490 | 75 | 430 | 1050 |
| M | 589 | 405 | 73 | 71 | 160 | 582 | 520 | 75 | 430 | 1055 |
| L | 614 | 411 | 73 | 72 | 189 | 599 | 550 | 70 | 430 | 1067 |
| XL | 638 | 419 | 73 | 72 | 213 | 617 | 580 | 70 | 430 | 1077 |
| XXL | 664 | 425 | 73 | 72 | 240 | 634 | 610 | 70 | 430 | 1091 |
All measurements in millimetres unless marked (°) for angles.
