2017 Bulls · RD

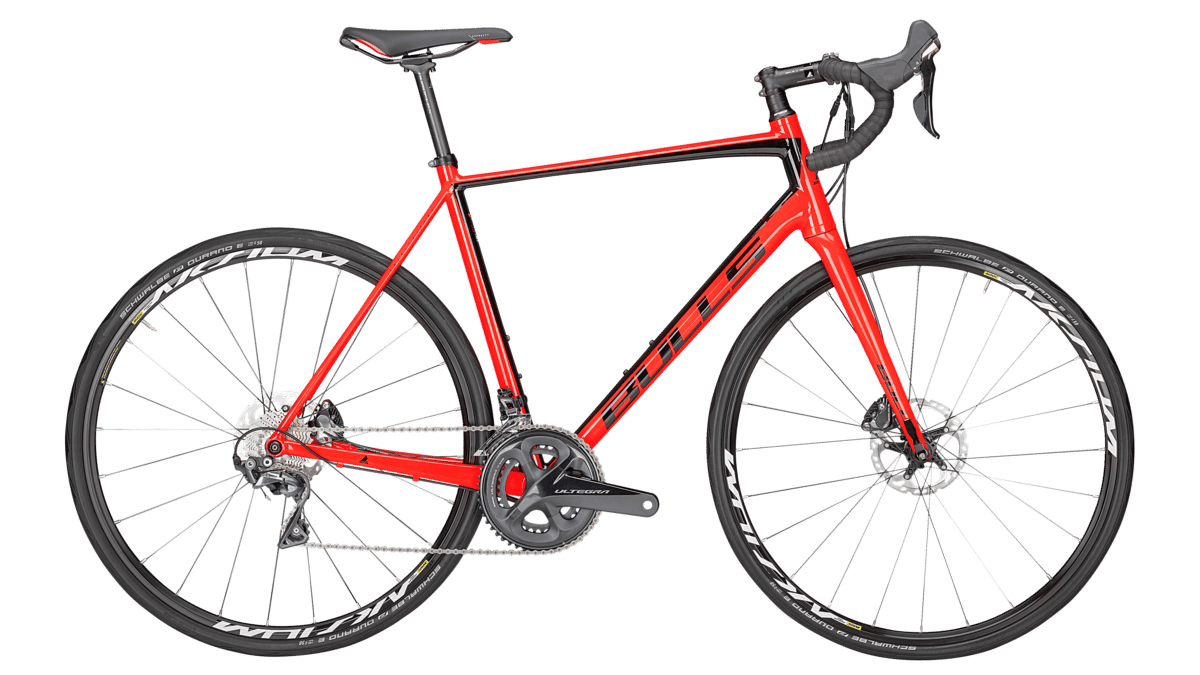

2017 Bulls Desert Falcon Disc geometry
Full frame geometry for the 2017 Bulls Desert Falcon Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 519 | 376 | 74 | 72 | 113 | 525 | 480 | 75 | 410 | 975 |
| S | 541 | 375 | 74 | 73 | 133 | 535 | 500 | 75 | 410 | 972 |
| M | 559 | 382 | 73 | 73 | 153 | 550 | 520 | 73 | 410 | 981 |
| L | 579 | 388 | 73 | 73 | 176 | 565 | 540 | 70 | 410 | 995 |
| XL | 600 | 394 | 73 | 73 | 198 | 580 | 560 | 70 | 412 | 1009 |
| XXL | 626 | 403 | 73 | 73 | 220 | 600 | 580 | 70 | 415 | 1029 |
All measurements in millimetres unless marked (°) for angles.
