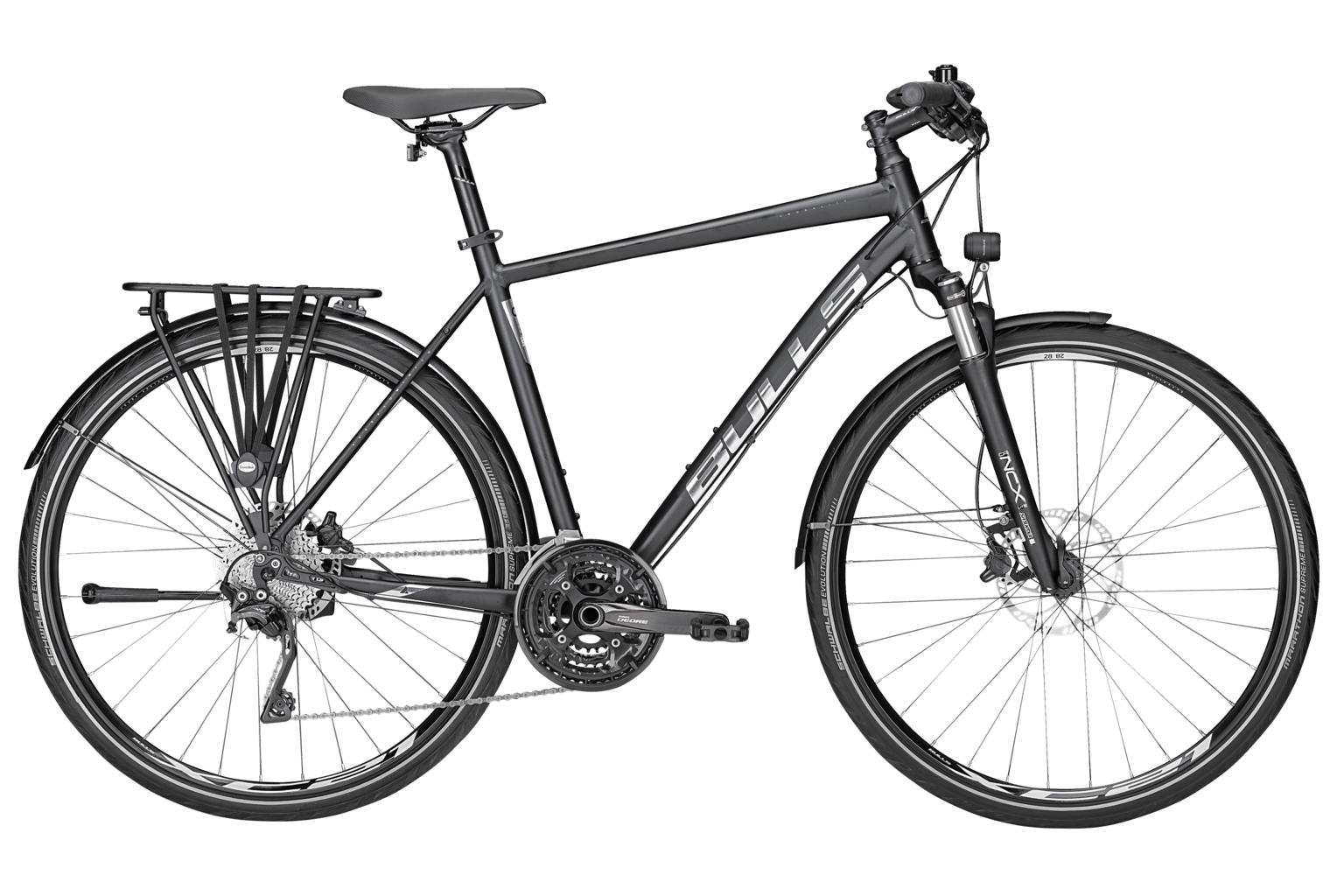

2017 Bulls Cross Lite geometry
Full frame geometry for the 2017 Bulls Cross Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 410 | 74 | 71 | 130 | 590 | 480 | 55 | 445 | 1084 |
| M | 614 | 418 | 74 | 71 | 135 | 600 | 540 | 55 | 445 | 1095 |
| L | 628 | 424 | 74 | 71 | 150 | 610 | 580 | 55 | 445 | 1105 |
| XL | 638 | 441 | 74 | 71 | 160 | 630 | 610 | 55 | 445 | 1126 |
All measurements in millimetres unless marked (°) for angles.
