2017 Bulls · MH

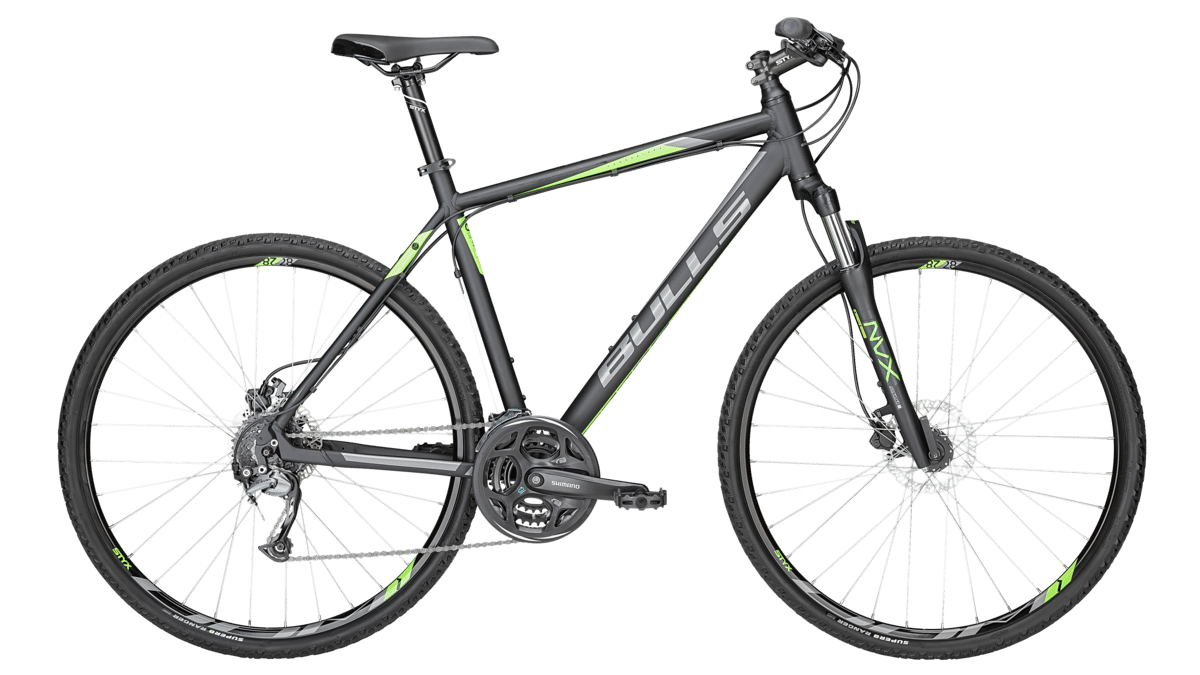

2017 Bulls Cross Bike geometry
Full frame geometry for the 2017 Bulls Cross Bike, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 628 | 394 | 74 | 71 | 130 | 580 | 480 | 55 | 440 | 1070 |
| M | 633 | 403 | 74 | 71 | 135 | 590 | 540 | 55 | 440 | 1080 |
| XS | 633 | 389 | 75 | 71 | 130 | 565 | 440 | 60 | 440 | 1065 |
| L | 647 | 408 | 74 | 71 | 150 | 603 | 580 | 55 | 440 | 1091 |
| XL | 657 | 426 | 74 | 71 | 160 | 620 | 610 | 55 | 440 | 1116 |
All measurements in millimetres unless marked (°) for angles.
