2017 Bulls · MHB

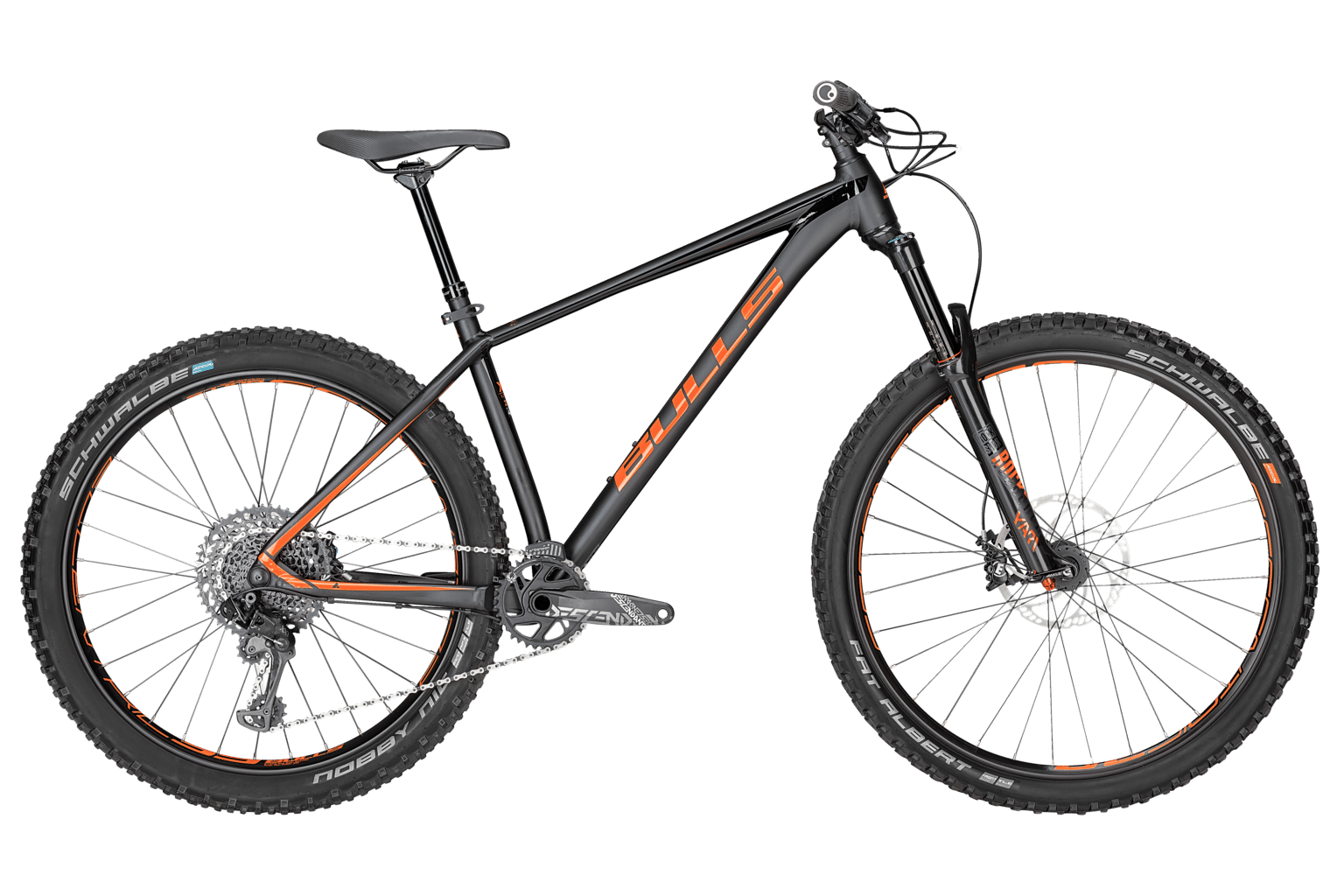

2017 Bulls Copperhead Max 27.5 geometry
Full frame geometry for the 2017 Bulls Copperhead Max 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 609 | 409 | 73 | 70 | 100 | 595 | 460 | 55 | 445 | 1112 |
| S | 614 | 393 | 74 | 70 | 100 | 575 | 410 | 60 | 440 | 1091 |
| L | 623 | 424 | 73 | 70 | 115 | 615 | 510 | 55 | 445 | 1133 |
| XL | 644 | 432 | 73 | 70 | 140 | 635 | 560 | 50 | 450 | 1150 |
All measurements in millimetres unless marked (°) for angles.
