2017 Bulls · MHB

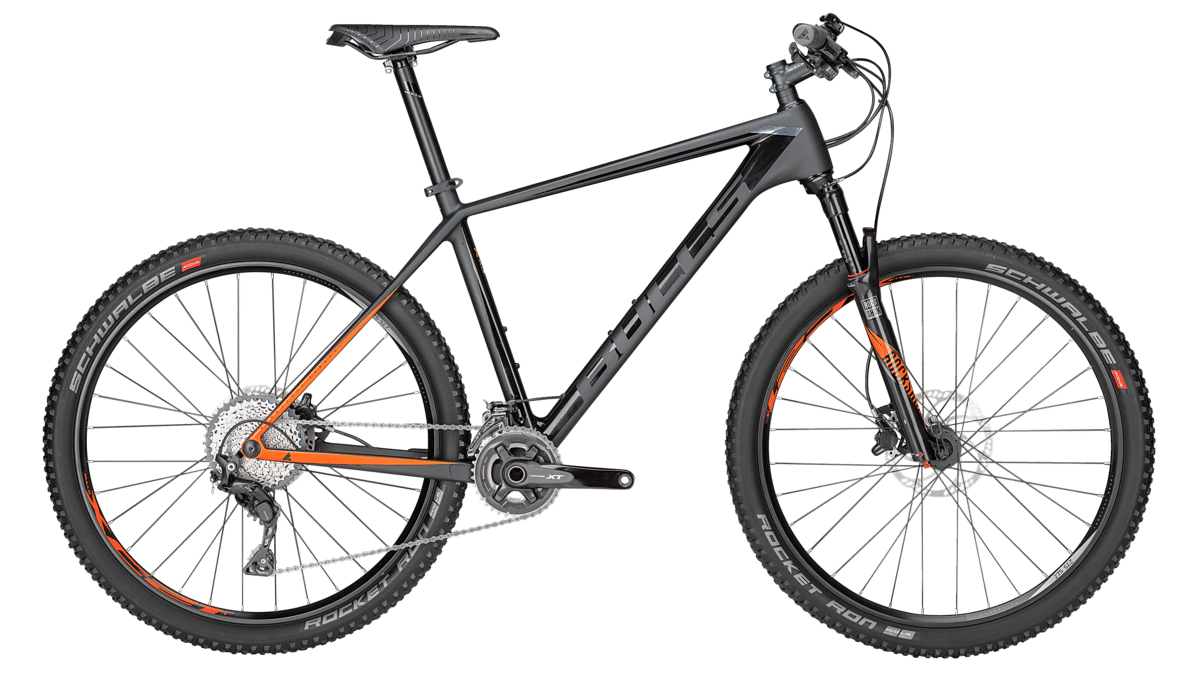

2017 Bulls Copperhead Carbon 27.5 geometry
Full frame geometry for the 2017 Bulls Copperhead Carbon 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 583 | 408 | 74 | 70 | 100 | 575 | 410 | 45 | 420 | 1066 |
| M | 584 | 423 | 74 | 70 | 105 | 595 | 440 | 40 | 425 | 1089 |
| L | 593 | 444 | 74 | 70 | 115 | 620 | 480 | 40 | 425 | 1113 |
| XL | 618 | 451 | 73 | 71 | 145 | 640 | 540 | 35 | 430 | 1131 |
All measurements in millimetres unless marked (°) for angles.
