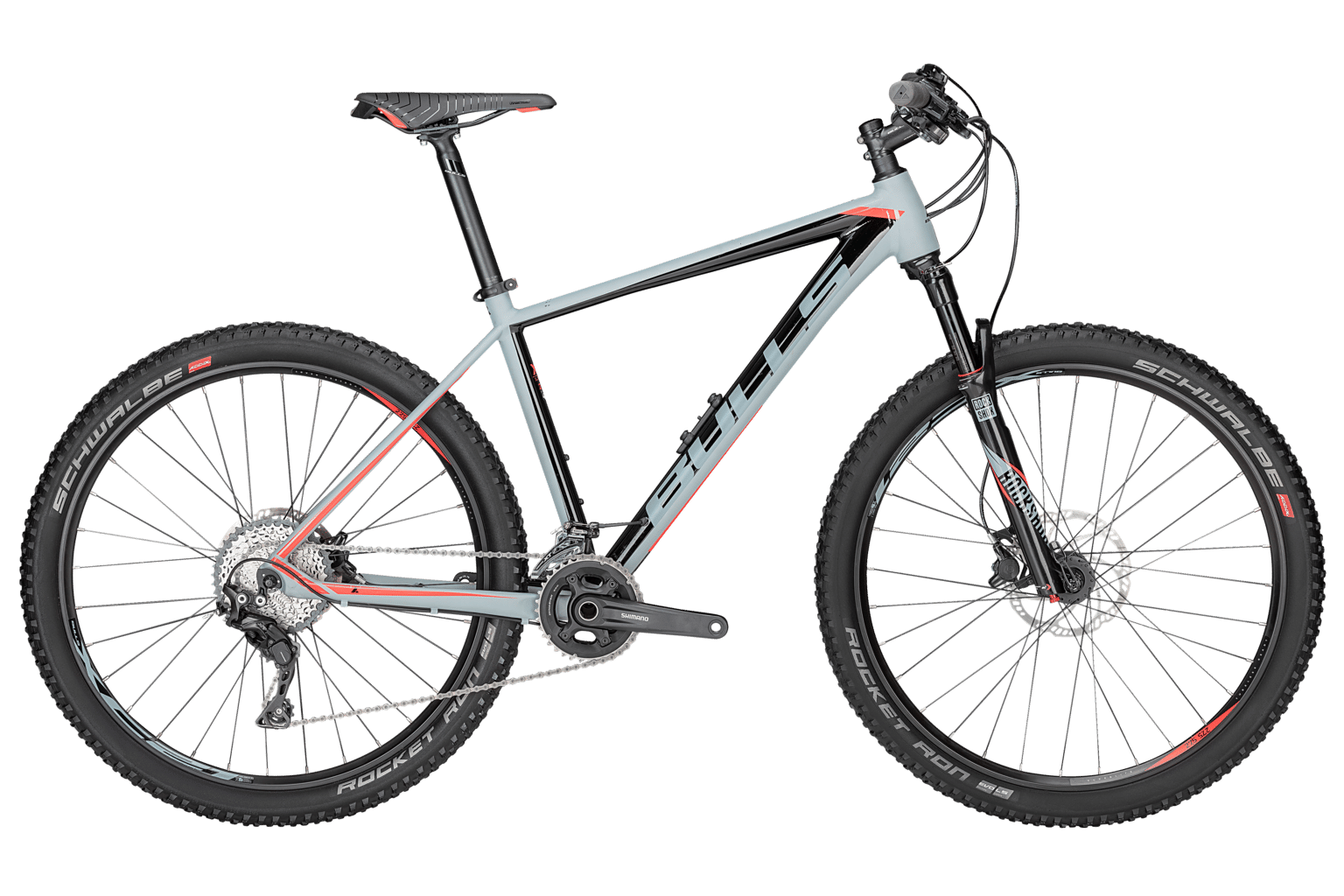

2017 Bulls Copperhead 3 27.5 geometry
Full frame geometry for the 2017 Bulls Copperhead 3 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 585 | 402 | 74 | 70 | 100 | 575 | 410 | 45 | 430 | 1071 |
| M | 594 | 413 | 73 | 70 | 115 | 595 | 460 | 40 | 435 | 1093 |
| L | 618 | 426 | 73 | 70 | 140 | 615 | 510 | 40 | 435 | 1114 |
| XL | 648 | 431 | 73 | 71 | 175 | 635 | 560 | 35 | 440 | 1131 |
All measurements in millimetres unless marked (°) for angles.
