2015 Bulls · MH

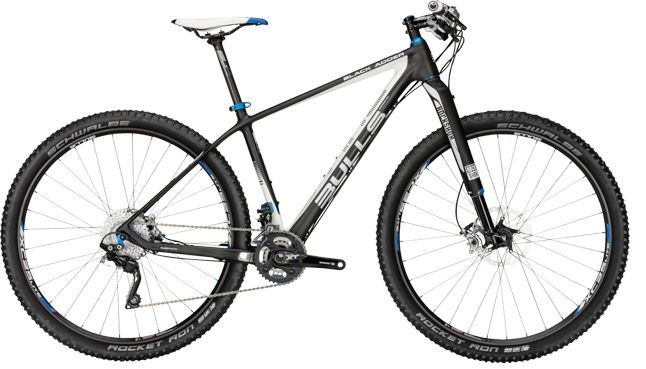

2015 Bulls Black Adder geometry
Full frame geometry for the 2015 Bulls Black Adder, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/46 | 587 | 410 | 73 | 70.5 | 105 | 590 | 460 | 60 | 648 | 455 | 1096 | 46 |
| S/41 | 587 | 401 | 73.5 | 70.5 | 100 | 575 | 410 | 65 | 637 | 455 | 1084 | 46 |
| L/51 | 597 | 422 | 72.5 | 70.5 | 115 | 610 | 510 | 60 | 663 | 460 | 1116 | 46 |
| XL/56 | 617 | 429 | 72 | 71 | 140 | 630 | 560 | 55 | 674 | 465 | 1133 | 46 |
All measurements in millimetres unless marked (°) for angles.
