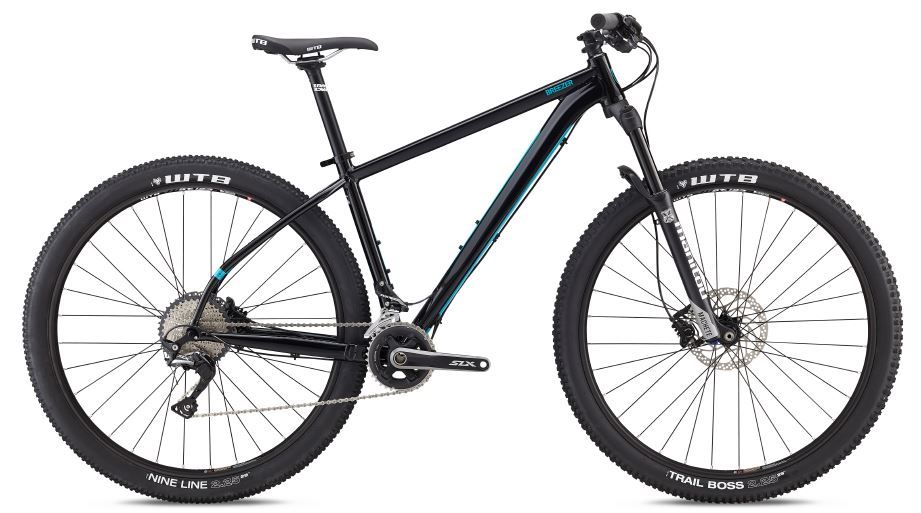

2018 Breezer Thunder MK II geometry
Full frame geometry for the 2018 Breezer Thunder MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17.5 | 626 | 419 | 73 | 69 | 100 | 610 | 445 | 786 | 55 | 438 | 1129 | 51 |
| S/16 | 626 | 402 | 73 | 69 | 100 | 593 | 410 | 764 | 55 | 438 | 1112 | 51 |
| XS/14.5 | 631 | 382 | 73 | 69 | 100 | 575 | 370 | 736 | 60 | 438 | 1092 | 51 |
| XL/20.5 | 636 | 448 | 73 | 69 | 130 | 648 | 520 | 842 | 55 | 438 | 1168 | 51 |
| L/18.5 | 640 | 431 | 73 | 69 | 115 | 626 | 475 | 810 | 55 | 438 | 1145 | 51 |
All measurements in millimetres unless marked (°) for angles.
