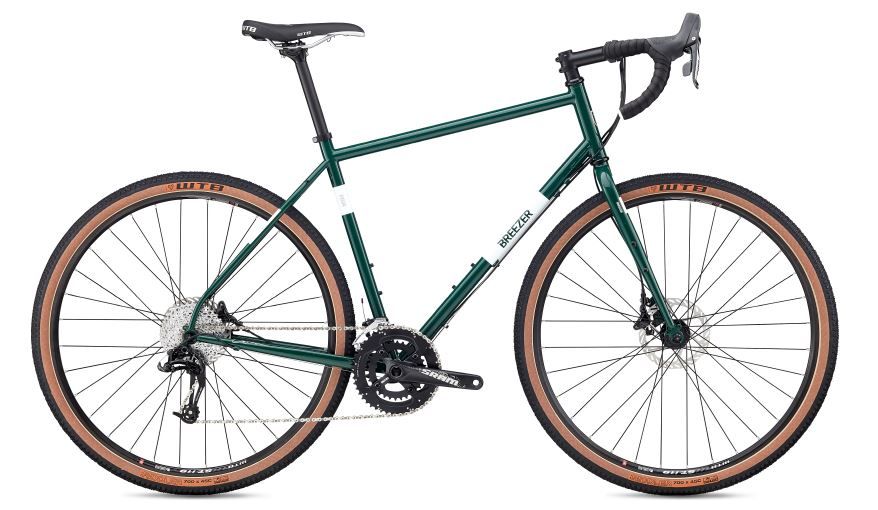

2018 Breezer Radar geometry
Full frame geometry for the 2018 Breezer Radar, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 563 | 358 | 75 | 70.5 | 100 | 565 | 450 | 712 | 75 | 457 | 1019 | 45 |
| S | 584 | 367 | 74 | 71 | 120 | 575 | 480 | 736 | 75 | 457 | 1031 | 45 |
| M | 602 | 371 | 73 | 71.5 | 140 | 585 | 510 | 763 | 75 | 457 | 1037 | 45 |
| L | 616 | 378 | 73 | 71.5 | 155 | 595 | 540 | 792 | 75 | 457 | 1048 | 45 |
| XL | 627 | 385 | 72.5 | 71.5 | 170 | 605 | 570 | 817 | 75 | 457 | 1061 | 45 |
| XXL | 648 | 389 | 72.5 | 71.5 | 190 | 625 | 600 | 842 | 75 | 457 | 1067 | 45 |
All measurements in millimetres unless marked (°) for angles.
