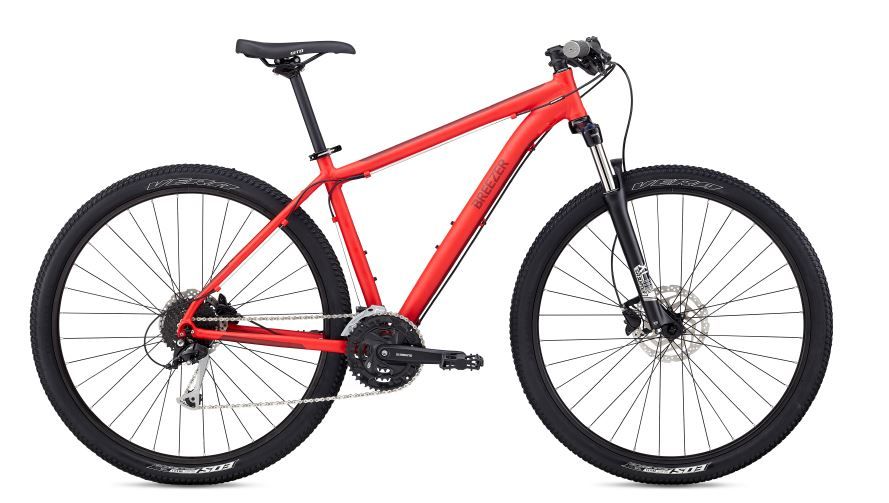

2018 Breezer Squall geometry
Full frame geometry for the 2018 Breezer Squall, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/17 | 618 | 390 | 72 | 71 | 100 | 590 | 430 | 787 | 45 | 445 | 1068 | 55 |
| XS/15 | 618 | 379 | 72 | 71 | 100 | 575 | 380 | 766 | 45 | 445 | 1052 | 55 |
| M/18.5 | 628 | 402 | 72 | 71 | 110 | 605 | 470 | 810 | 45 | 445 | 1083 | 55 |
| L/19.5 | 637 | 408 | 72 | 71 | 120 | 615 | 500 | 829 | 45 | 445 | 1093 | 55 |
| XL/21 | 646 | 420 | 72 | 71 | 130 | 630 | 530 | 848 | 45 | 445 | 1108 | 55 |
All measurements in millimetres unless marked (°) for angles.
