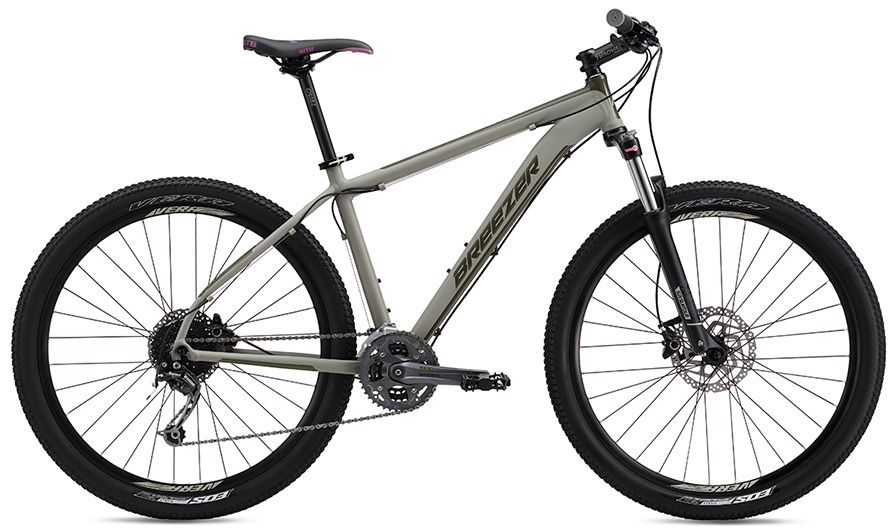

2016 Breezer Storm 27.5 geometry
Full frame geometry for the 2016 Breezer Storm 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M/17.5 | 596 | 403 | 72.5 | 70.5 | 110 | 600 | 445 | 784 | 37 | 644 | 435 | 1076 | 42 |
| S/16 | 596 | 387 | 72.5 | 70.5 | 110 | 585 | 410 | 769 | 37 | 628 | 435 | 1060 | 42 |
| XS/14.5 | 596 | 370 | 72.5 | 70.5 | 110 | 570 | 370 | 741 | 37 | 611 | 435 | 1044 | 42 |
| L/18.5 | 605 | 411 | 72.5 | 70.5 | 120 | 610 | 475 | 802 | 37 | 655 | 435 | 1087 | 42 |
| XL/20 | 614 | 424 | 72.5 | 70.5 | 130 | 625 | 510 | 823 | 37 | 671 | 435 | 1104 | 42 |
All measurements in millimetres unless marked (°) for angles.
