2018 Breezer · G

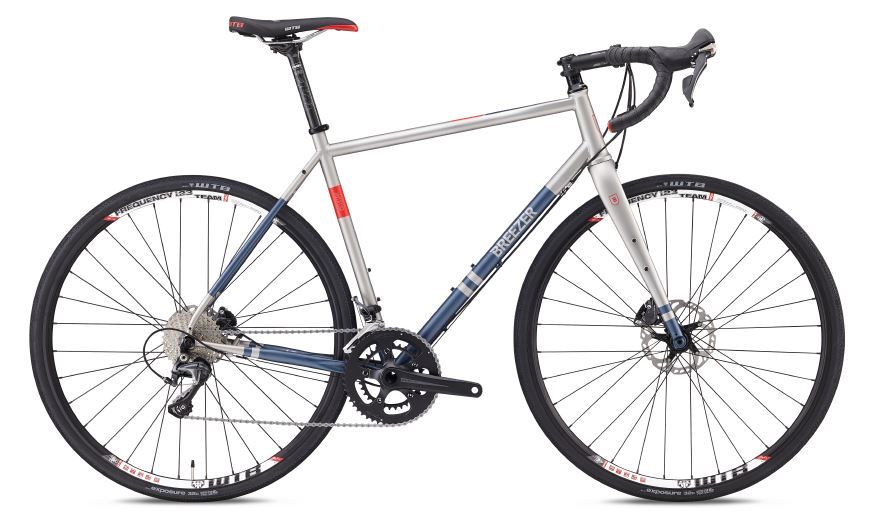

2018 Breezer Inversion geometry
Full frame geometry for the 2018 Breezer Inversion, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 537 | 370 | 75 | 71 | 100 | 515 | 450 | 707 | 78 | 425 | 1000 | 48 |
| S | 553 | 380 | 74 | 71.5 | 115 | 540 | 480 | 730 | 78 | 425 | 1008 | 48 |
| M | 566 | 384 | 73 | 72 | 130 | 555 | 510 | 755 | 75 | 425 | 1013 | 48 |
| L | 590 | 387 | 73 | 73 | 155 | 570 | 540 | 782 | 75 | 425 | 1016 | 48 |
| XL | 611 | 391 | 72.5 | 72 | 180 | 585 | 570 | 810 | 72 | 425 | 1036 | 48 |
| XXL | 636 | 394 | 72 | 72.5 | 210 | 605 | 600 | 836 | 72 | 425 | 1042 | 48 |
All measurements in millimetres unless marked (°) for angles.
