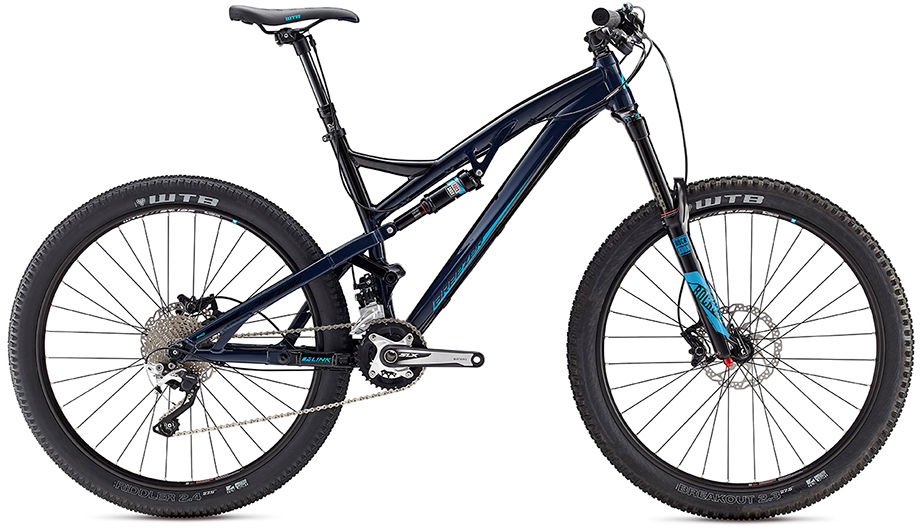

2016 Breezer Repack 27.5 geometry
Full frame geometry for the 2016 Breezer Repack 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/17 | 601 | 416 | 73 | 68 | 100 | 600 | 430 | 755 | 2 | 703 | 438 | 1141 | 44 |
| M/18.5 | 611 | 428 | 73 | 68 | 110 | 615 | 470 | 756 | 2 | 718 | 438 | 1156 | 44 |
| L/19.5 | 620 | 436 | 73 | 68 | 120 | 625 | 500 | 760 | 2 | 729 | 438 | 1167 | 44 |
| XL/21 | 629 | 448 | 73 | 68 | 130 | 640 | 530 | 778 | 2 | 745 | 438 | 1183 | 44 |
All measurements in millimetres unless marked (°) for angles.
