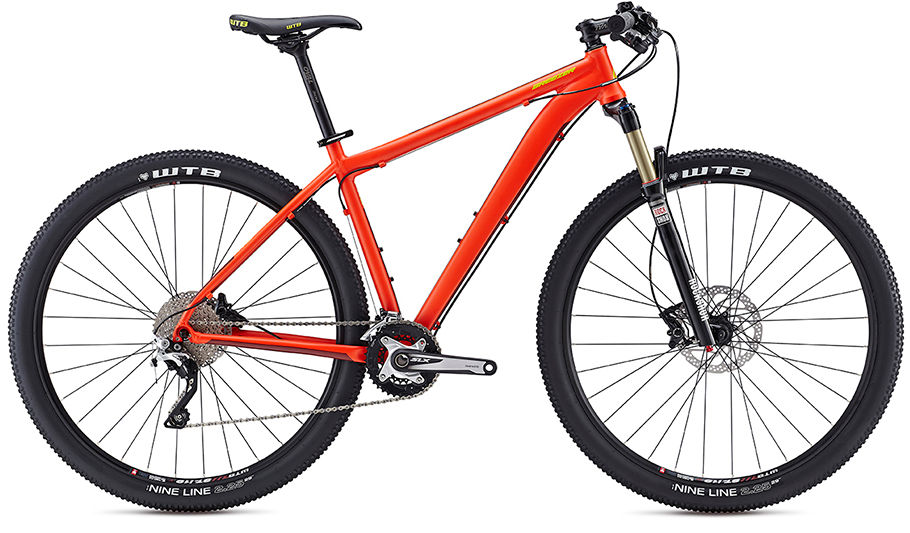

2016 Breezer Thunder 29 geometry
Full frame geometry for the 2016 Breezer Thunder 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/17 | 609 | 387 | 72 | 71 | 100 | 590 | 430 | 787 | 53 | 628 | 439 | 1062 | 45 |
| XS/15 | 609 | 377 | 73 | 71 | 100 | 575 | 380 | 762 | 53 | 617 | 439 | 1051 | 45 |
| M/18.5 | 618 | 400 | 72 | 71 | 110 | 605 | 470 | 810 | 53 | 643 | 439 | 1077 | 45 |
| L/19.5 | 628 | 407 | 72 | 71 | 120 | 615 | 500 | 829 | 53 | 653 | 439 | 1087 | 45 |
| XL/21 | 637 | 419 | 72 | 71 | 130 | 630 | 530 | 848 | 53 | 668 | 439 | 1102 | 45 |
All measurements in millimetres unless marked (°) for angles.
