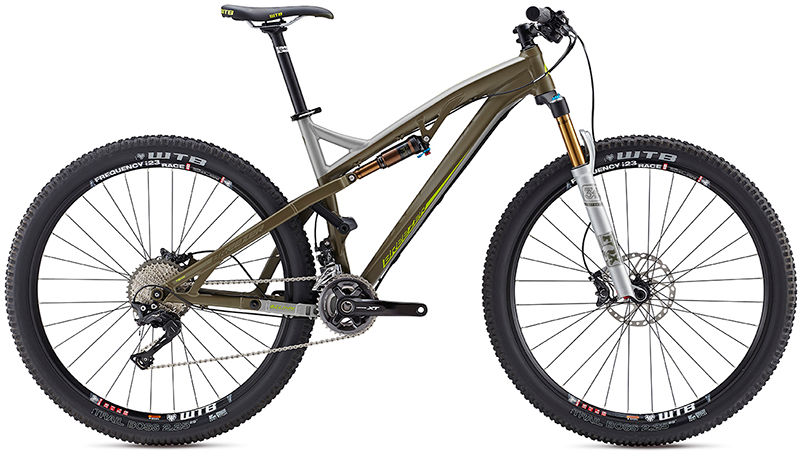

2016 Breezer Supercell 29 geometry
Full frame geometry for the 2016 Breezer Supercell 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/17 | 599 | 419 | 74.5 | 70 | 100 | 585 | 430 | 766 | 22 | 680 | 449 | 1128 | 51 |
| M/18.5 | 608 | 431 | 74.5 | 70 | 110 | 600 | 470 | 765 | 22 | 696 | 449 | 1144 | 51 |
| L/19.5 | 618 | 439 | 74.5 | 70 | 120 | 610 | 500 | 768 | 22 | 706 | 449 | 1155 | 51 |
| XL/21 | 627 | 451 | 74.5 | 70 | 130 | 625 | 530 | 775 | 22 | 722 | 449 | 1170 | 51 |
All measurements in millimetres unless marked (°) for angles.
