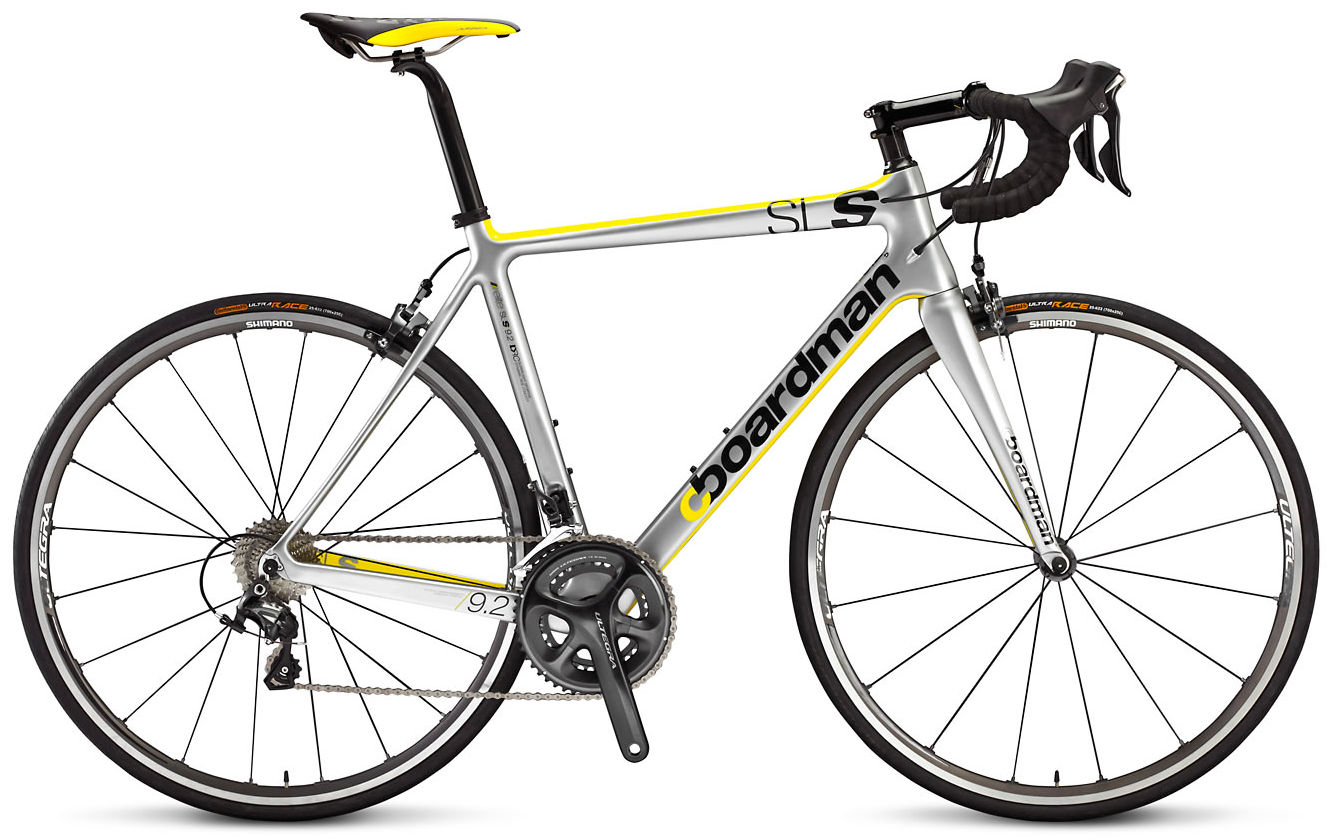

2014 Boardman Elite SLS geometry
Full frame geometry for the 2014 Boardman Elite SLS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 491 | 359 | 74 | 70.5 | 100 | 510 | 68 | 560 | 410 | 960 | 45 | 71 |
| XS | 520 | 379 | 73 | 72 | 110 | 525 | 68 | 572 | 410 | 972 | 45 | 61 |
| S | 545 | 385 | 73 | 72.5 | 140 | 540 | 68 | 583 | 410 | 983 | 45 | 58 |
| M | 562 | 390 | 73 | 73 | 160 | 555 | 68 | 589 | 410 | 990 | 45 | 55 |
| L | 581 | 394 | 73 | 73 | 180 | 570 | 68 | 599 | 410 | 1000 | 45 | 55 |
| XL | 595 | 403 | 73 | 73 | 195 | 585 | 68 | 613 | 410 | 1013 | 45 | 55 |
| XXL | 614 | 410 | 73 | 73 | 220 | 600 | 68 | 627 | 410 | 1028 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
