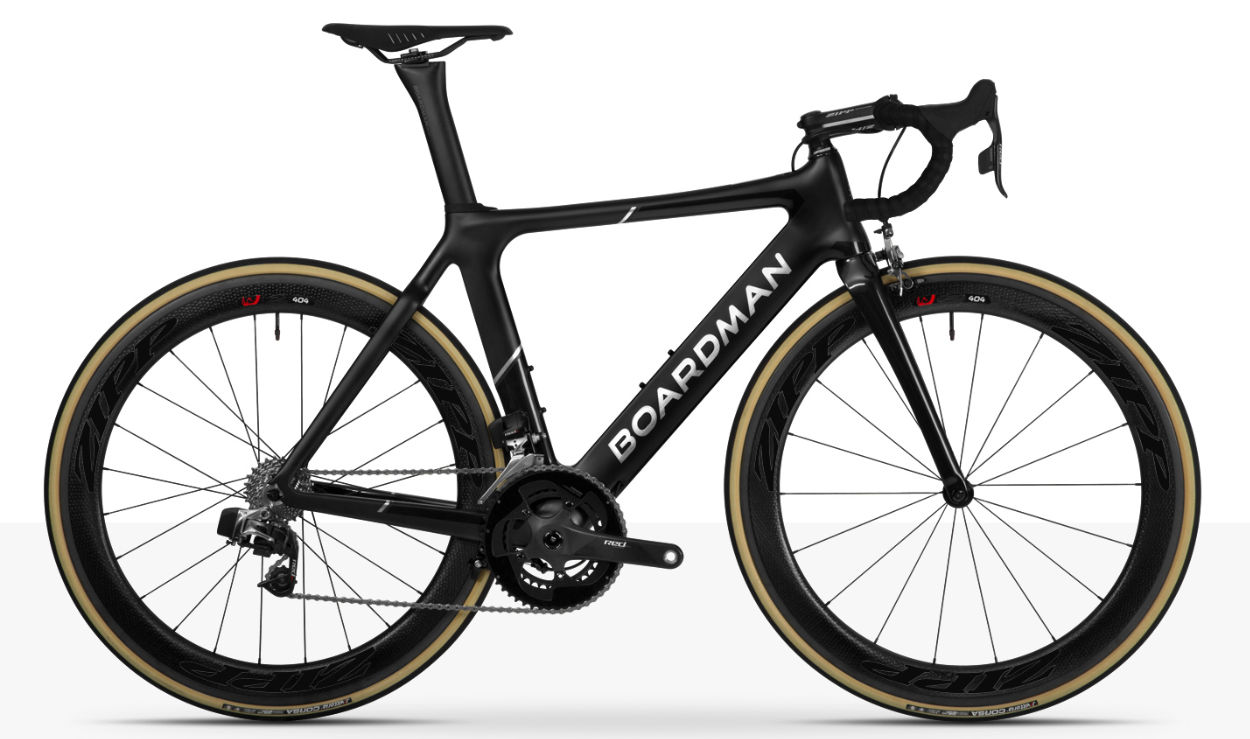

2019 Boardman Elite AIR MK II geometry
Full frame geometry for the 2019 Boardman Elite AIR MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 498 | 367 | 74 | 70.5 | 100 | 510 | 544 | 68 | 405 | 964 | 45 |
| 52 | 511 | 383 | 74.5 | 72 | 110 | 525 | 560 | 68 | 405 | 971 | 45 |
| 54 | 537 | 386 | 74 | 72.5 | 135 | 540 | 580 | 68 | 405 | 978 | 45 |
| 56 | 553 | 391 | 73.5 | 73 | 150 | 555 | 500 | 68 | 405 | 984 | 45 |
| 58 | 572 | 395 | 73 | 73 | 170 | 570 | 520 | 68 | 405 | 993 | 45 |
| 60 | 586 | 405 | 73 | 73 | 185 | 585 | 535 | 68 | 405 | 1008 | 45 |
All measurements in millimetres unless marked (°) for angles.
