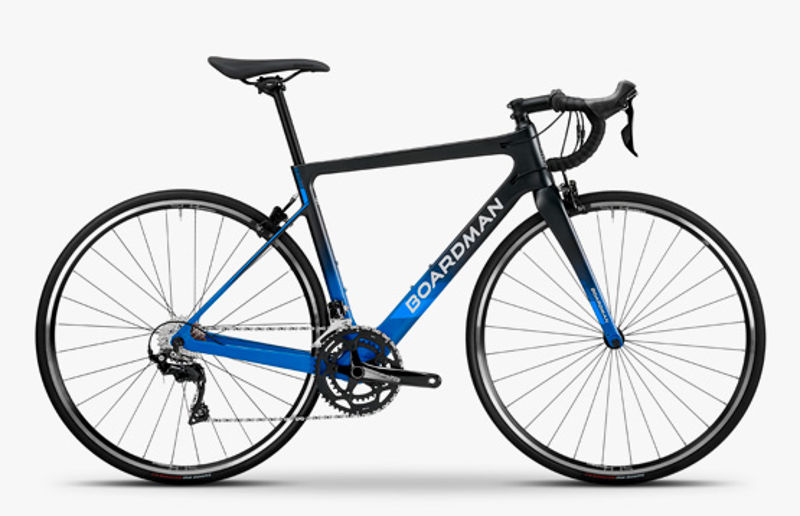

2021 Boardman Elite SLR 8.9 geometry
Full frame geometry for the 2021 Boardman Elite SLR 8.9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 546 | 378 | 73.5 | 72 | 140 | 540 | 485 | 68 | 410 | 48 |
| M | 567 | 387 | 73.5 | 72.5 | 160 | 555 | 500 | 68 | 410 | 48 |
| L | 588 | 390 | 73 | 73 | 180 | 570 | 525 | 68 | 410 | 45 |
| XL | 603 | 401 | 73 | 73 | 195 | 585 | 545 | 68 | 410 | 45 |
All measurements in millimetres unless marked (°) for angles.
