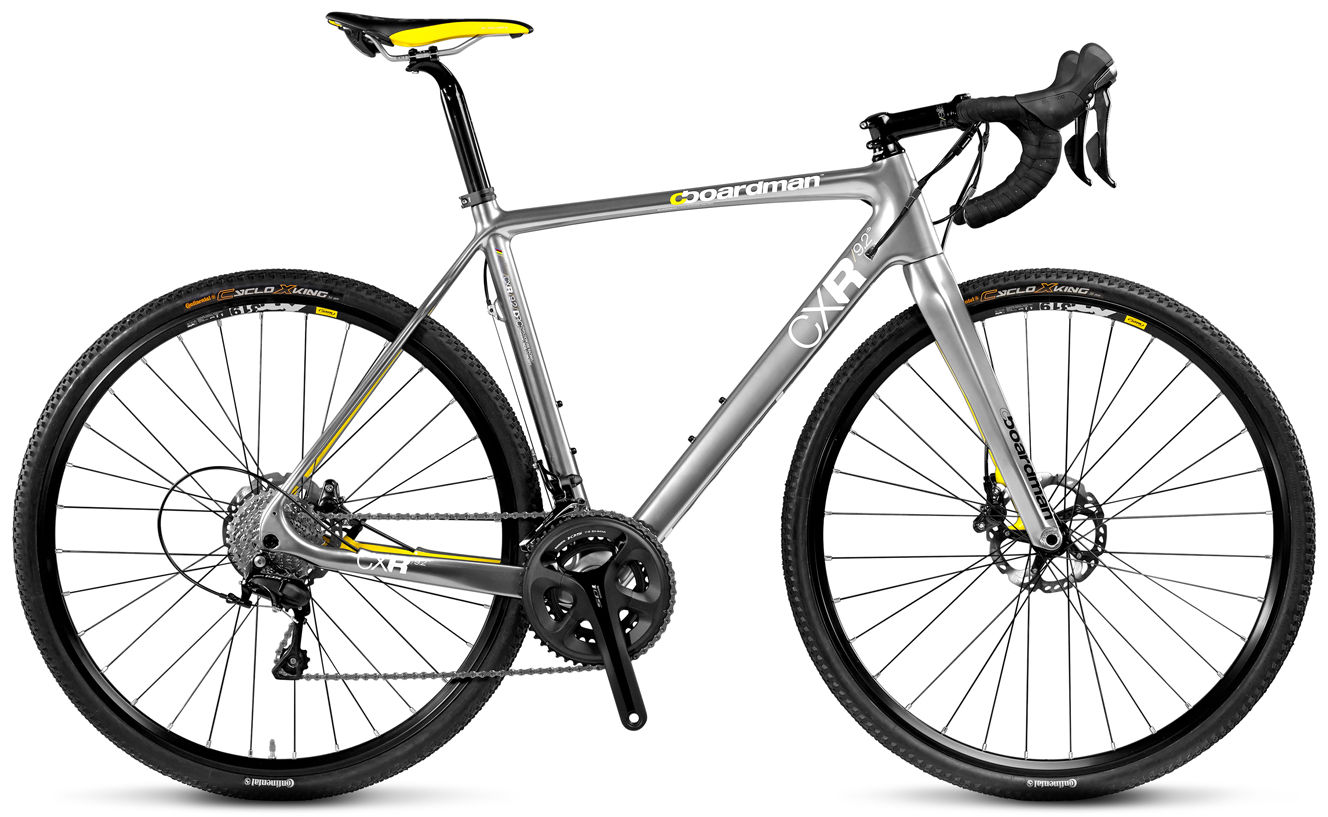

2014 Boardman Elite CXR Carbon geometry
Full frame geometry for the 2014 Boardman Elite CXR Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 381 | 74 | 70 | 100 | 520 | 67 | 595 | 425 | 1011 | 45 | 80 |
| S | 544 | 383 | 73.5 | 71.5 | 120 | 535 | 65 | 591 | 425 | 1008 | 45 | 70 |
| M | 563 | 384 | 73 | 72 | 140 | 550 | 65 | 594 | 425 | 1011 | 45 | 66 |
| L | 584 | 387 | 73 | 72.5 | 160 | 565 | 65 | 599 | 425 | 1015 | 45 | 63 |
| XL | 605 | 395 | 73 | 73 | 180 | 580 | 65 | 608 | 425 | 1025 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
