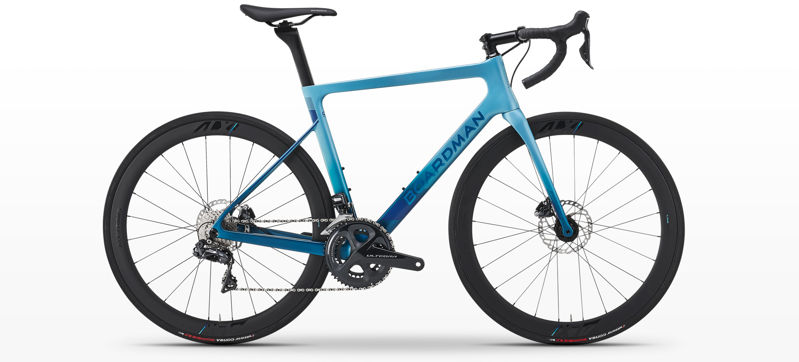

2021 Boardman Elite SLR 9 Series geometry
Full frame geometry for the 2021 Boardman Elite SLR 9 Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 377 | 74 | 71 | 120 | 525 | 470 | 65 | 587 | 415 | 991 | 48 |
| S | 542 | 380 | 73.5 | 72 | 140 | 540 | 485 | 68 | 589 | 415 | 993 | 48 |
| M | 563 | 388 | 73.5 | 72.5 | 160 | 555 | 500 | 68 | 599 | 415 | 1002 | 48 |
| L | 584 | 391 | 73 | 73 | 180 | 570 | 525 | 68 | 600 | 415 | 1006 | 45 |
| XL | 600 | 402 | 73 | 73 | 195 | 585 | 545 | 68 | 616 | 415 | 1022 | 45 |
All measurements in millimetres unless marked (°) for angles.
