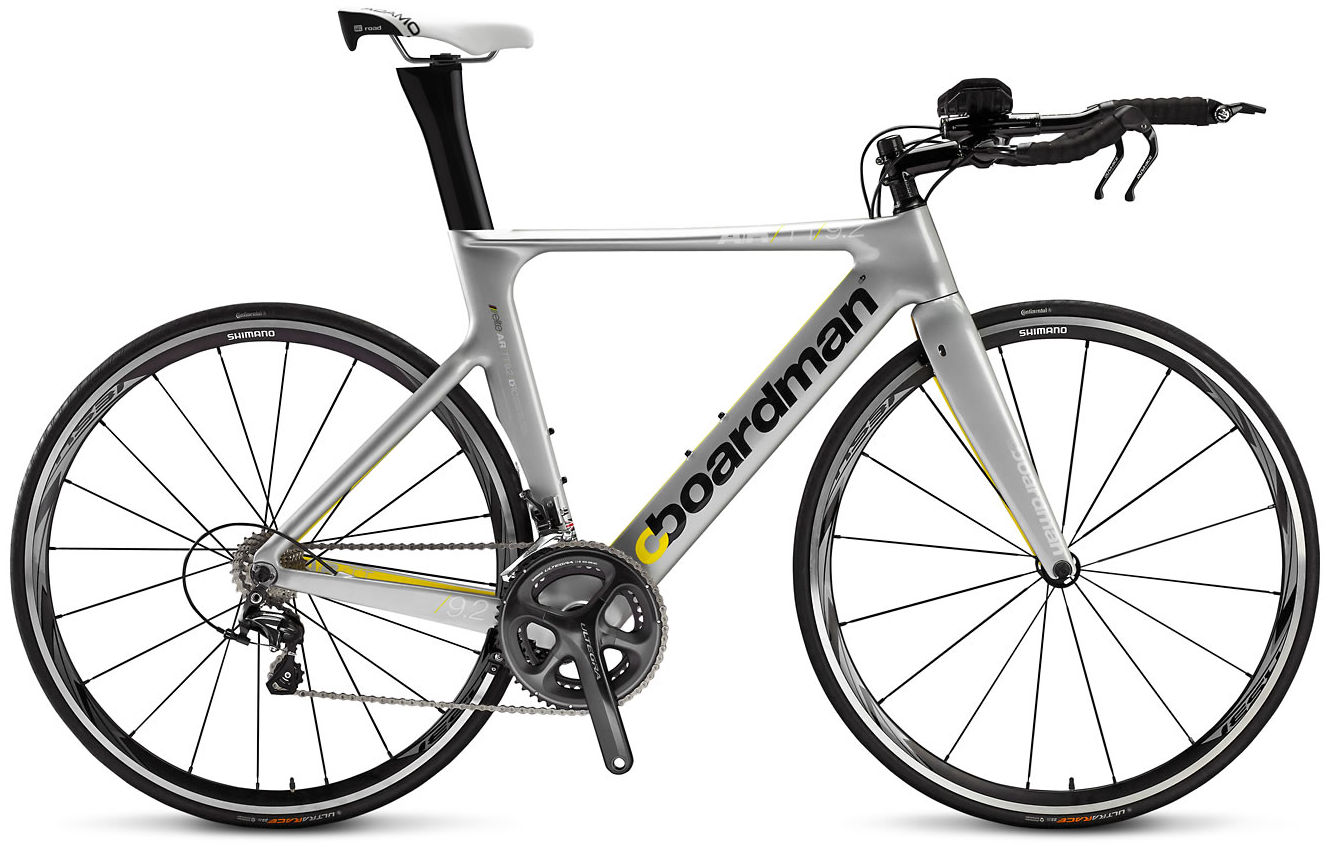

2015 Boardman Elite AiRTT geometry
Full frame geometry for the 2015 Boardman Elite AiRTT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 493 | 386 | 77.5 | 72.5 | 90 | 510 | 68 | 400 | 43 | 60 |
| S | 500 | 404 | 77.5 | 72.5 | 95 | 530 | 68 | 400 | 43 | 60 |
| M | 519 | 419 | 77.5 | 73 | 115 | 555 | 68 | 400 | 43 | 57 |
| L | 537 | 435 | 77.5 | 73 | 135 | 570 | 68 | 400 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
