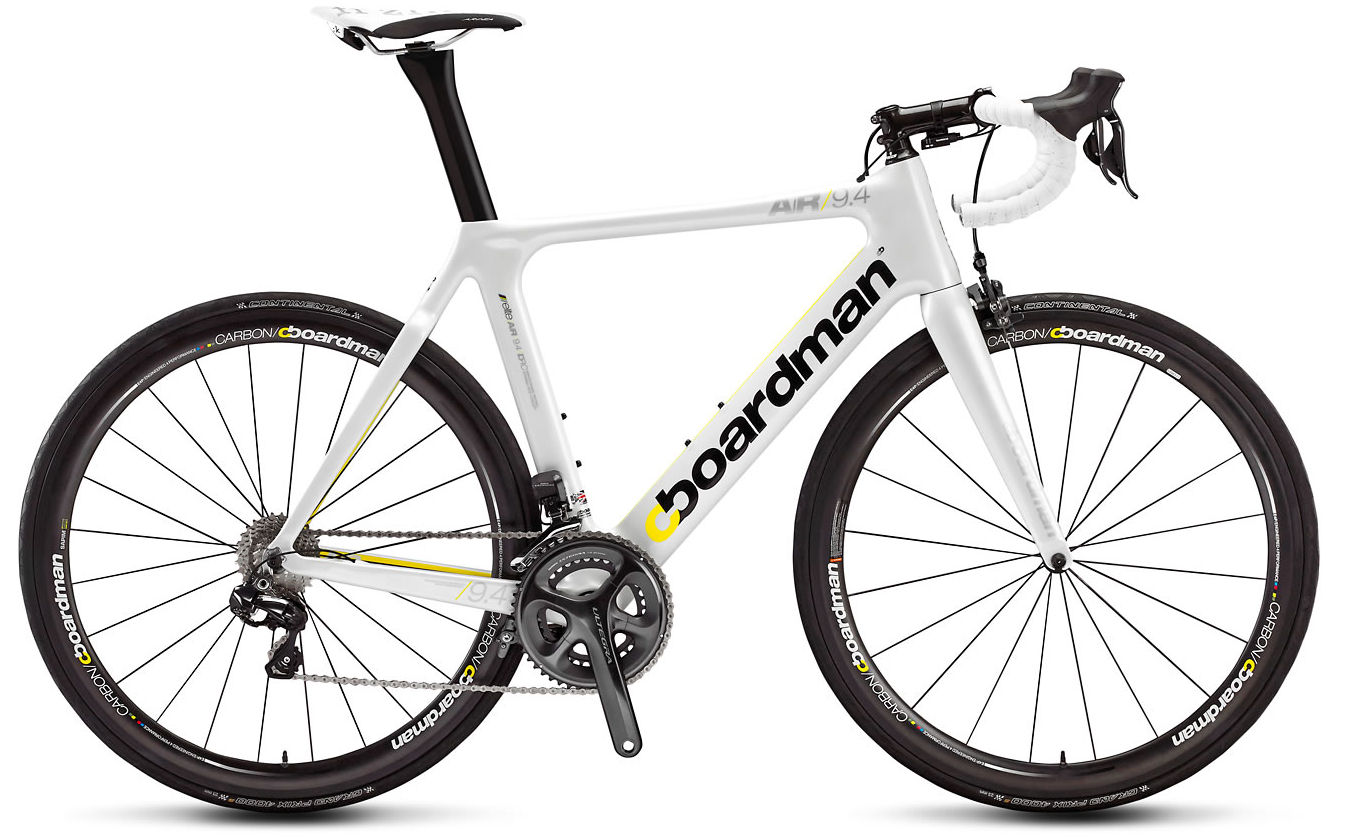

2014 Boardman Elite AiR MK I geometry
Full frame geometry for the 2014 Boardman Elite AiR MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 511 | 381 | 74 | 72 | 110 | 525 | 68 | 572 | 405 | 967 | 43 | 63 |
| S | 536 | 387 | 73 | 72.5 | 130 | 540 | 68 | 580 | 405 | 975 | 43 | 60 |
| M | 553 | 392 | 73 | 73 | 150 | 555 | 68 | 586 | 405 | 982 | 43 | 57 |
| L | 572 | 396 | 73 | 73 | 170 | 570 | 68 | 596 | 405 | 992 | 43 | 57 |
| XL | 586 | 405 | 73 | 73 | 180 | 585 | 68 | 608 | 405 | 1004 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
