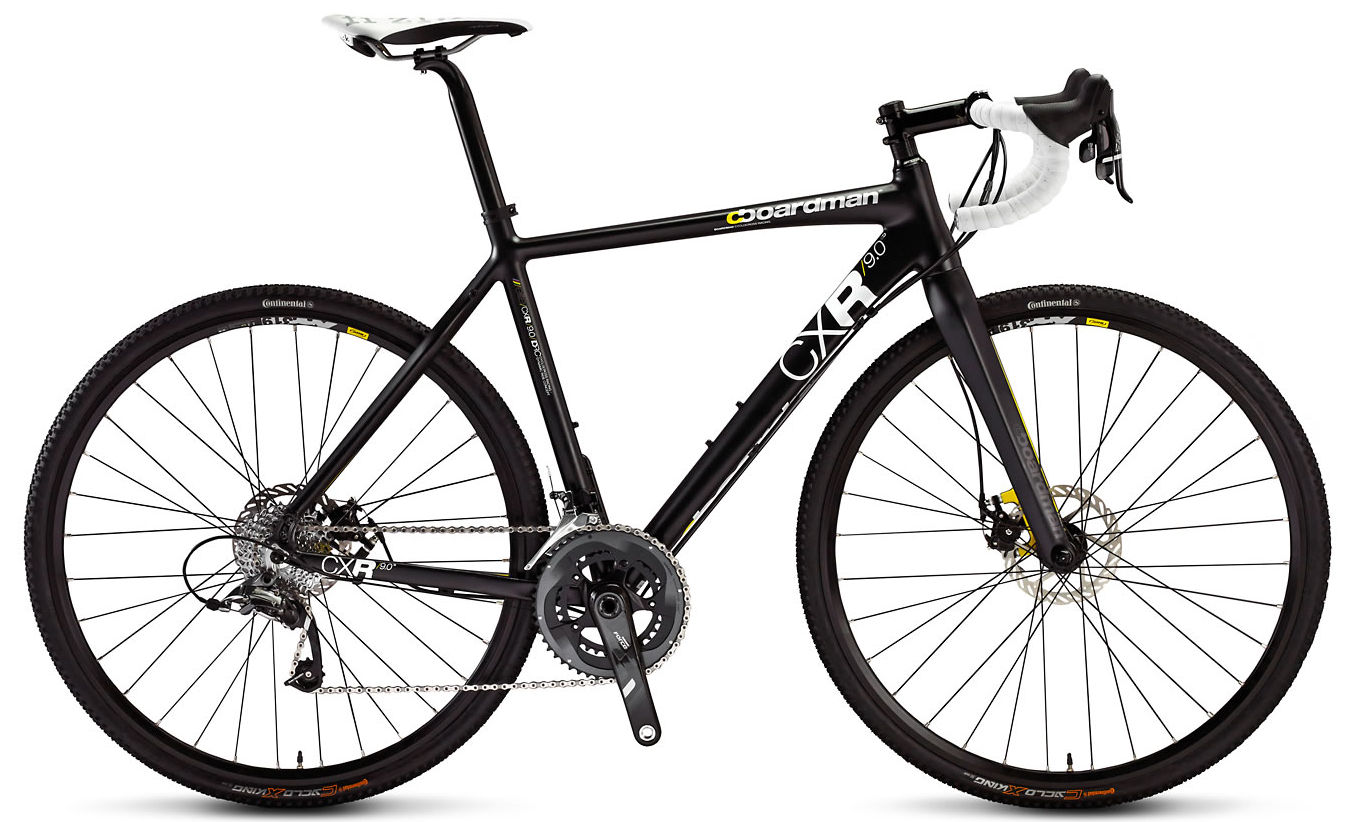

2014 Boardman Elite CXR Alloy geometry
Full frame geometry for the 2014 Boardman Elite CXR Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XL | 541 | 365 | 73 | 73 | 175 | 585 | 65 | 569 | 435 | 995 | 45 | 60 |
| XS | 546 | 384 | 74 | 72 | 120 | 525 | 65 | 580 | 435 | 1006 | 45 | 66 |
| S | 560 | 389 | 73 | 72.5 | 130 | 540 | 65 | 584 | 435 | 1010 | 45 | 63 |
| M | 579 | 393 | 73 | 73 | 140 | 555 | 65 | 587 | 435 | 1013 | 45 | 60 |
| L | 593 | 404 | 73 | 73 | 160 | 570 | 65 | 603 | 435 | 1030 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
