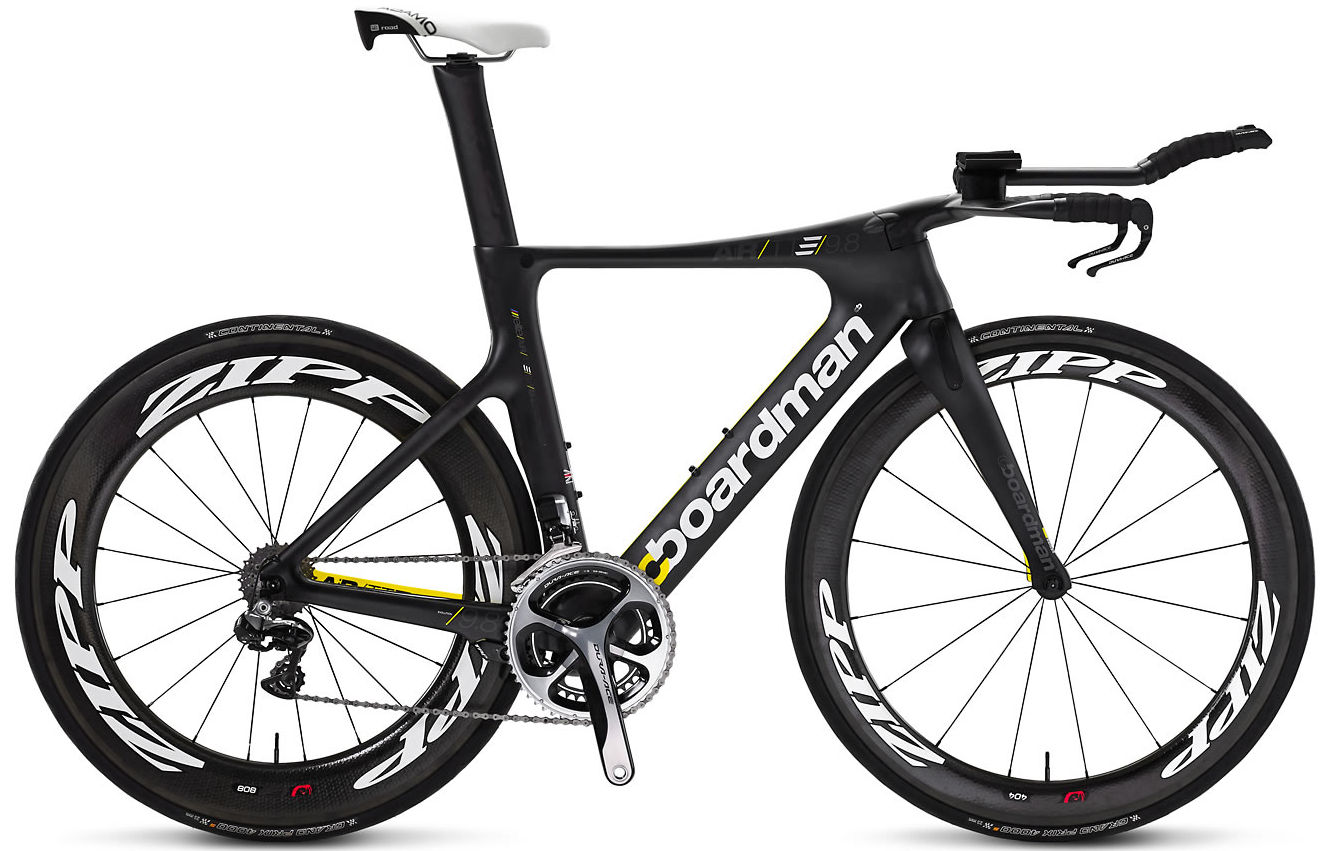

2014 Boardman Elite AiR TTE geometry

Name: 2014 Boardman Elite AiR TTE
Brand: Boardman Elite

Full frame geometry for the 2014 Boardman Elite AiR TTE, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
XS	495	384	78	73	90	490	70	400	43
S	514	400	78	73	110	510	70	400	43
M	533	416	78	73	130	530	70	400	43
L	553	432	78	73	150	550	70	400	43

All measurements in millimetres unless marked (°) for angles.
