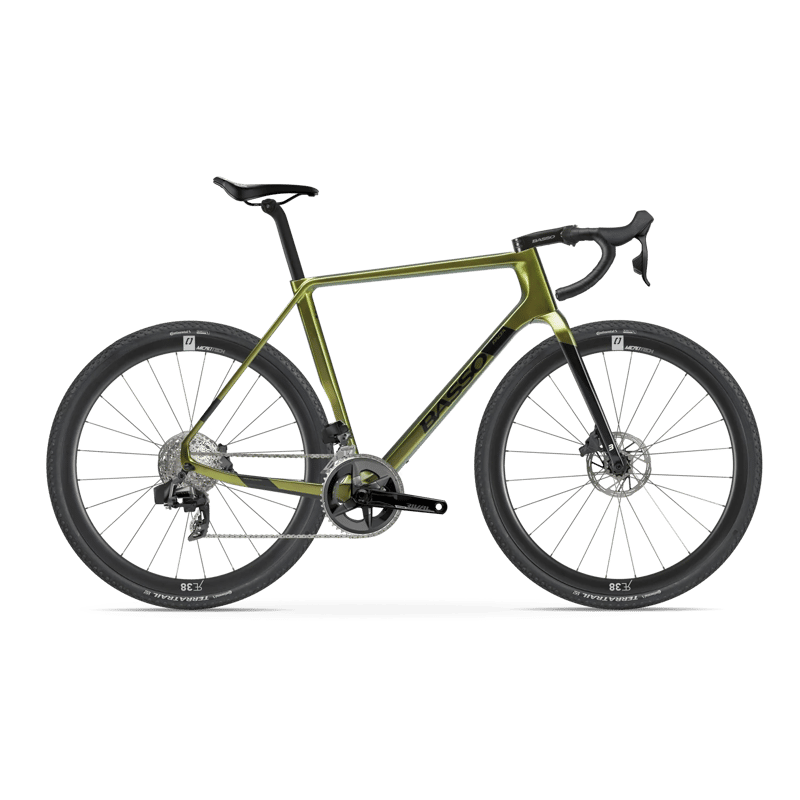

2023 Basso Palta geometry
Full frame geometry for the 2023 Basso Palta, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 528 | 354 | 75 | 68 | 110 | 495 | 410 | 71 | 591 | 425 | 1006 |
| S | 542 | 370 | 74.5 | 69.5 | 125 | 520 | 450 | 95 | 600 | 425 | 1016 |
| M | 563 | 373 | 73.5 | 70 | 145 | 540 | 510 | 65 | 606 | 425 | 1022 |
| L | 581 | 389 | 73.5 | 71 | 160 | 560 | 540 | 65 | 617 | 425 | 1034 |
| XL | 600 | 402 | 73 | 71 | 180 | 585 | 570 | 65 | 637 | 425 | 1053 |
All measurements in millimetres unless marked (°) for angles.
