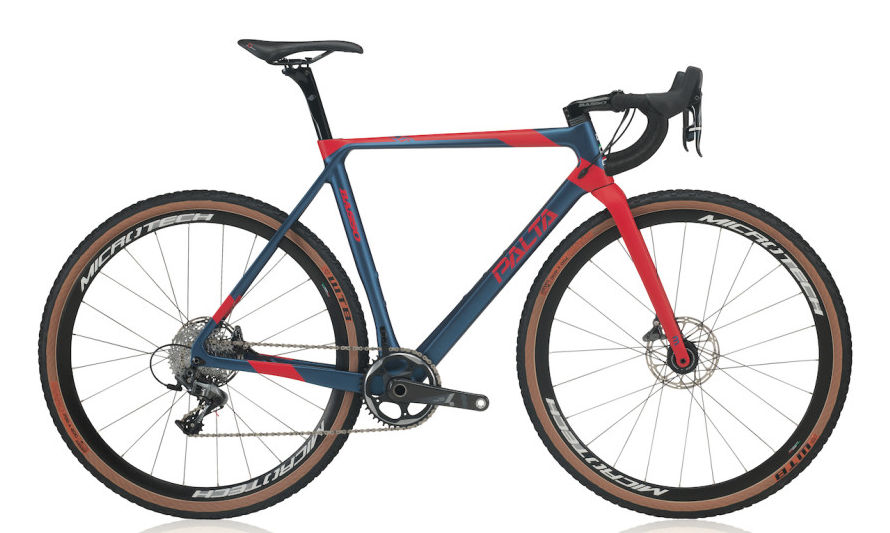

2019 Basso Palta geometry
Full frame geometry for the 2019 Basso Palta, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 520 | 366 | 74.5 | 69.5 | 105 | 510 | 480 | 65 | 588 | 430 | 1009 |
| M | 541 | 375 | 74 | 70 | 125 | 530 | 520 | 65 | 600 | 430 | 1021 |
| L | 559 | 384 | 73.5 | 71 | 140 | 550 | 550 | 65 | 605 | 430 | 1026 |
| XL | 578 | 388 | 73 | 71 | 160 | 565 | 580 | 65 | 616 | 430 | 1038 |
All measurements in millimetres unless marked (°) for angles.
