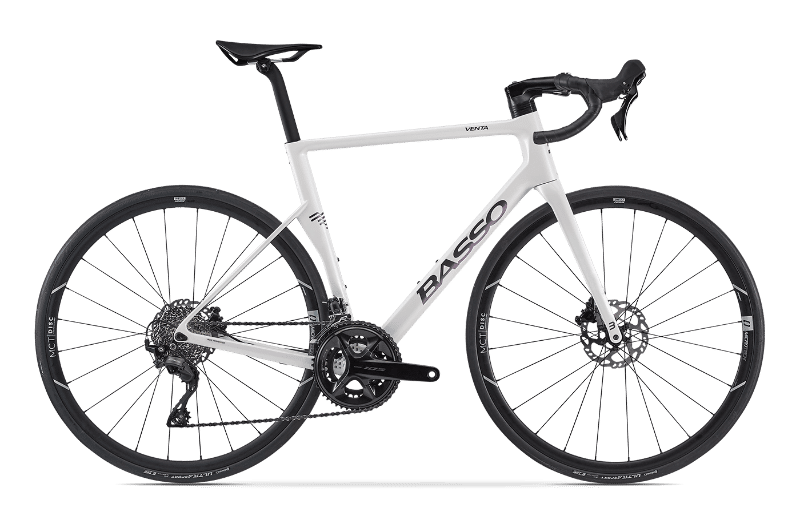

2026 Basso Venta R geometry
Full frame geometry for the 2026 Basso Venta R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 42 | 534 | 371.9 | 76.5 | 71.8 | 124 | 505 | 420 | 575.7 | 404 |
| 48 | 534 | 372 | 75 | 71.8 | 124 | 515 | 480 | 575.8 | 404 |
| 51 | 558.5 | 375.4 | 75 | 72 | 149 | 525 | 510 | 585.2 | 404 |
| 53 | 571 | 381.3 | 74 | 72.3 | 161 | 545 | 530 | 592.2 | 404 |
| 56 | 579.5 | 383.1 | 73.5 | 73.5 | 179 | 560 | 560 | 589.1 | 406 |
| 58 | 620.5 | 385.3 | 73 | 73.5 | 203 | 575 | 580 | 589.1 | 410 |
| 61 | 645.4 | 386.6 | 72.5 | 74 | 227 | 590 | 610 | 601.2 | 410 |
All measurements in millimetres unless marked (°) for angles.
