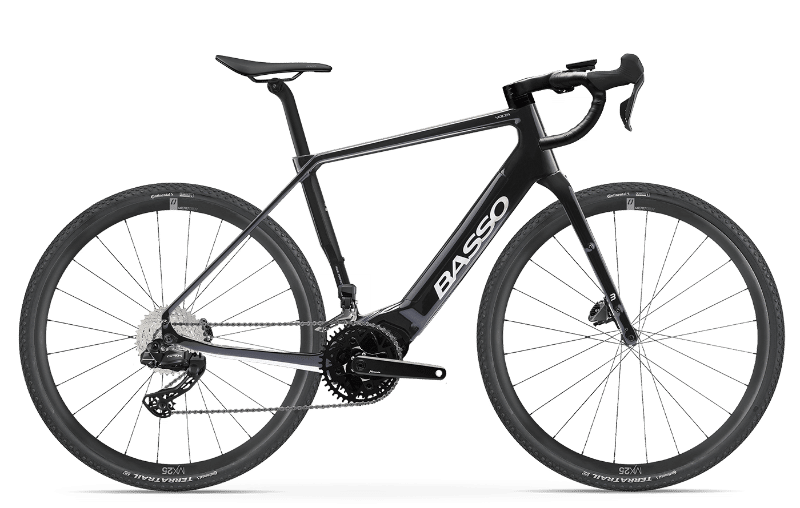

2026 Basso Volta geometry
Full frame geometry for the 2026 Basso Volta, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 549 | 348 | 74.5 | 69.5 | 130 | 500 | 430 | 574 | 440 |
| M | 580 | 364 | 74 | 70 | 160 | 530 | 490 | 597 | 440 |
| L | 603 | 382 | 73.5 | 71 | 180 | 560 | 540 | 612 | 440 |
| XL | 617 | 402 | 73 | 71 | 195 | 590 | 570 | 636 | 440 |
All measurements in millimetres unless marked (°) for angles.
