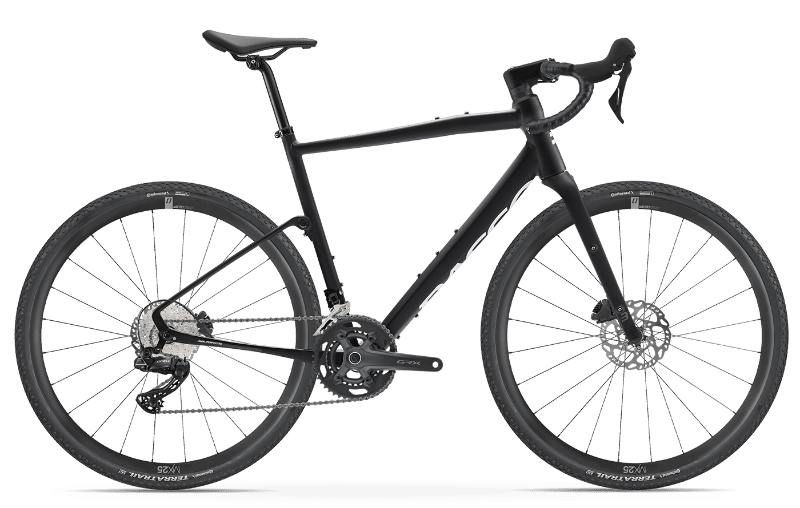

2026 Basso Tera geometry
Full frame geometry for the 2026 Basso Tera, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 545 | 340 | 73.5 | 70 | 130 | 501 | 430 | 572 | 425 |
| M | 574 | 359 | 73.5 | 70 | 160 | 530 | 490 | 602 | 425 |
| L | 592 | 384 | 73.5 | 70 | 180 | 560 | 540 | 633 | 425 |
| XL | 607 | 408 | 73.5 | 70 | 195 | 590 | 570 | 661 | 425 |
All measurements in millimetres unless marked (°) for angles.
