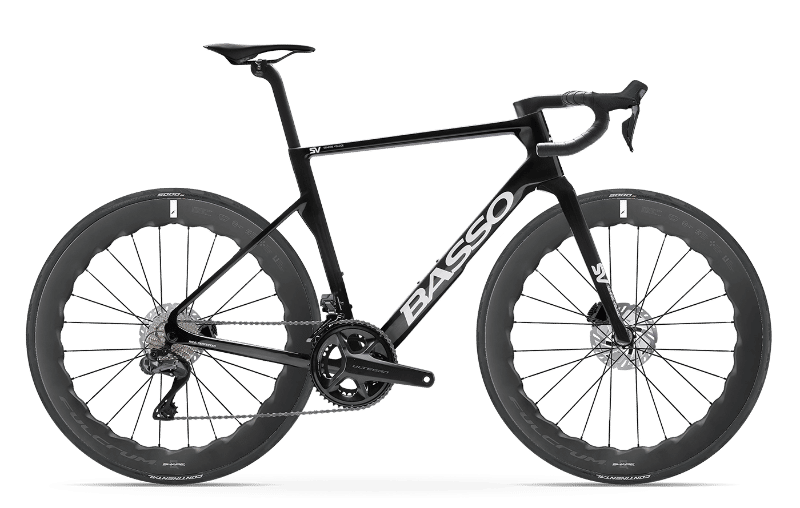

2026 Basso SV geometry
Full frame geometry for the 2026 Basso SV, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 520 | 370 | 75.5 | 71.2 | 115 | 505 | 420 | 722 | 575 | 406 | 971 |
| 48 | 521 | 375 | 75 | 71.5 | 115 | 515 | 455 | 744 | 578 | 406 | 974 |
| 51 | 547 | 380 | 74.7 | 72 | 140 | 530 | 485 | 772 | 586 | 406 | 982 |
| 53 | 560 | 385 | 74 | 72.5 | 152 | 546 | 505 | 789 | 591 | 406 | 987 |
| 56 | 584 | 387 | 73.5 | 73 | 170 | 560 | 535 | 810 | 594 | 408 | 991 |
| 58 | 609 | 389 | 73 | 73.5 | 194 | 575 | 550 | 830 | 599 | 412 | 999 |
| 61 | 634 | 390 | 72.5 | 74 | 218 | 590 | 580 | 857 | 602 | 412 | 1002 |
All measurements in millimetres unless marked (°) for angles.
