2022 Wilier · RD

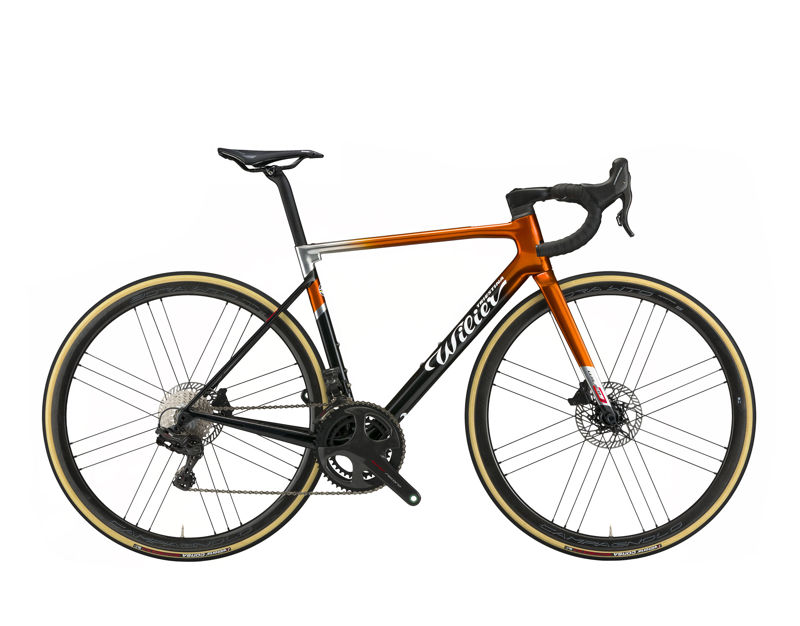

2022 Wilier Wilier 0 geometry
Full frame geometry for the 2022 Wilier Wilier 0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 503 | 376 | 75.2 | 70.5 | 102 | 511 | 430 | 407 | 977 |
| S | 519 | 381 | 74.6 | 71.7 | 118 | 525 | 460 | 407 | 979 |
| M | 536 | 386 | 74 | 72.2 | 136 | 541 | 490 | 408 | 988 |
| L | 554 | 391 | 73.5 | 72.7 | 153 | 556 | 520 | 410 | 996 |
| XL | 572 | 397 | 73 | 72.8 | 172 | 572 | 540 | 411 | 1008 |
| XXL | 591 | 402 | 72.6 | 73.1 | 192 | 587 | 560 | 412 | 1017 |
All measurements in millimetres unless marked (°) for angles.
