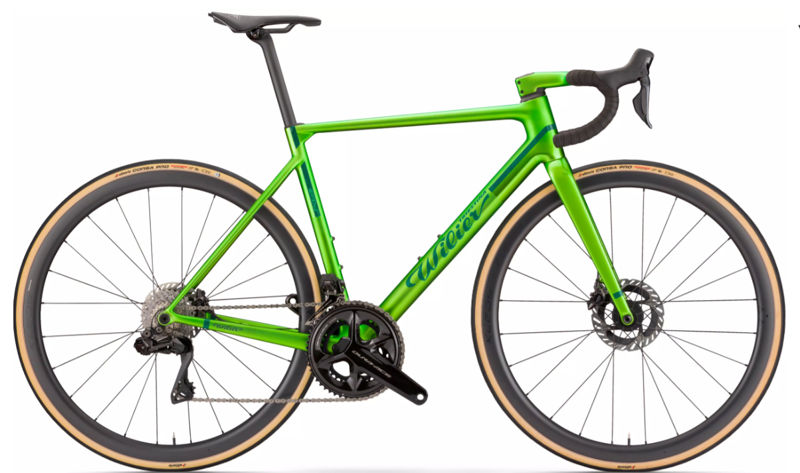

2024 Wilier Verticale SLR geometry
Full frame geometry for the 2024 Wilier Verticale SLR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 374 | 75.2 | 70.6 | 105 | 509 | 450 | 405 | 974 |
| S | 523 | 380 | 74.5 | 71.5 | 121 | 527 | 480 | 407 | 981 |
| M | 541 | 387 | 74 | 72 | 138 | 543 | 500 | 408 | 990 |
| L | 559 | 393 | 73.5 | 72.5 | 155 | 559 | 520 | 410 | 999 |
| XL | 577 | 400 | 73 | 73 | 172 | 576 | 540 | 412 | 1009 |
| XXL | 595 | 408 | 73 | 73.5 | 189 | 589 | 560 | 412 | 1017 |
All measurements in millimetres unless marked (°) for angles.
