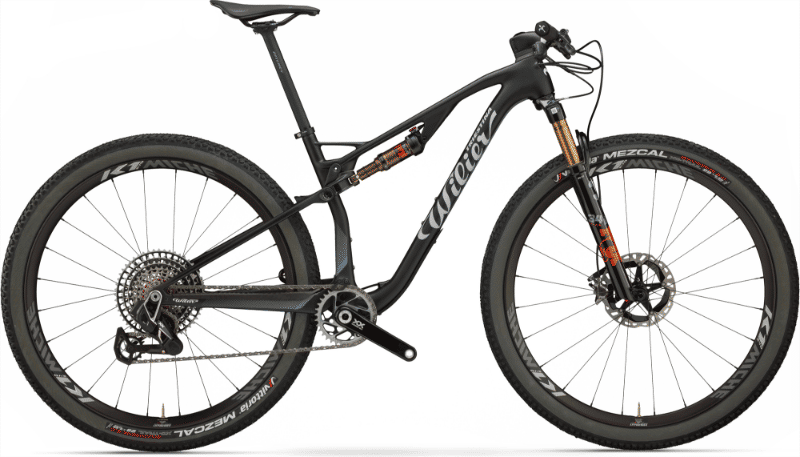

2026 Wilier Urta SLR geometry
Full frame geometry for the 2026 Wilier Urta SLR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 400 | 74 | 69 | 90 | 570 | 410 | 435 | 1088 |
| M | 596 | 426 | 74 | 69 | 93 | 597 | 440 | 435 | 1115 |
| L | 604 | 453 | 74 | 69 | 101 | 626 | 480 | 435 | 1145 |
| XL | 613 | 480 | 74 | 69 | 111 | 656 | 530 | 435 | 1175 |
All measurements in millimetres unless marked (°) for angles.
