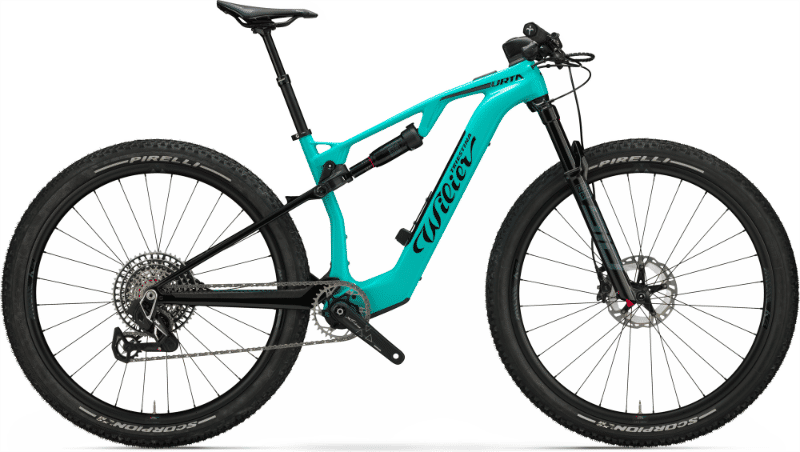

2026 Wilier Urta Hybrid geometry
Full frame geometry for the 2026 Wilier Urta Hybrid, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 406 | 74 | 66 | 93 | 576 | 410 | 448 | 1148 |
| M | 597 | 432 | 74 | 66.7 | 94 | 603 | 440 | 448 | 1167 |
| L | 608 | 458 | 74 | 66.7 | 105 | 632 | 480 | 448 | 1198 |
| XL | 623 | 485 | 74 | 66.7 | 122 | 664 | 520 | 448 | 1231 |
All measurements in millimetres unless marked (°) for angles.
