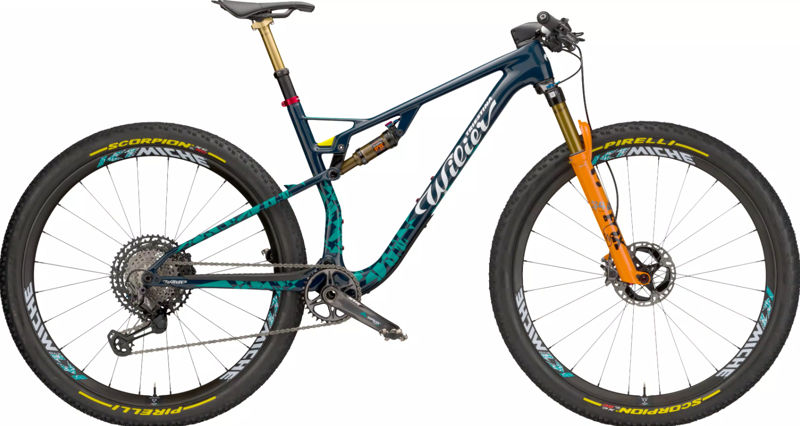

2024 Wilier Ultra Max SLR geometry
Full frame geometry for the 2024 Wilier Ultra Max SLR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| M | 598 | 443 | 75 | 67.5 | 8.8 | 603 | 435 | 1154 |
| S | 598 | 415 | 75 | 67.5 | 8.8 | 575 | 435 | 1126 |
| L | 602 | 471 | 75 | 67.5 | 9.2 | 632 | 435 | 1184 |
| XL | 613 | 500 | 75 | 67.5 | 10.4 | 664 | 435 | 1218 |
All measurements in millimetres unless marked (°) for angles.
